DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZER6003AV-HYD

Zurn Top Mount Exposed Sensor Flush Valve for Urinal (Zurn HydroX Power). Model ZER6003AV-HYD. Hydropowered operation requires no hard wiring or battery replacement; Features gear-driven ceramic cartridge and triple filtered AquaVantage diaphragm; Includes 3/4" control stop with internal siphon-guard and high pressure vacuum breaker; Standard 24-hour line flushing to maintain fixture trap seals. material: Chrome-plated finish, thermoplastic elastomer diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZER6003AV-HYD.pdfData sheet

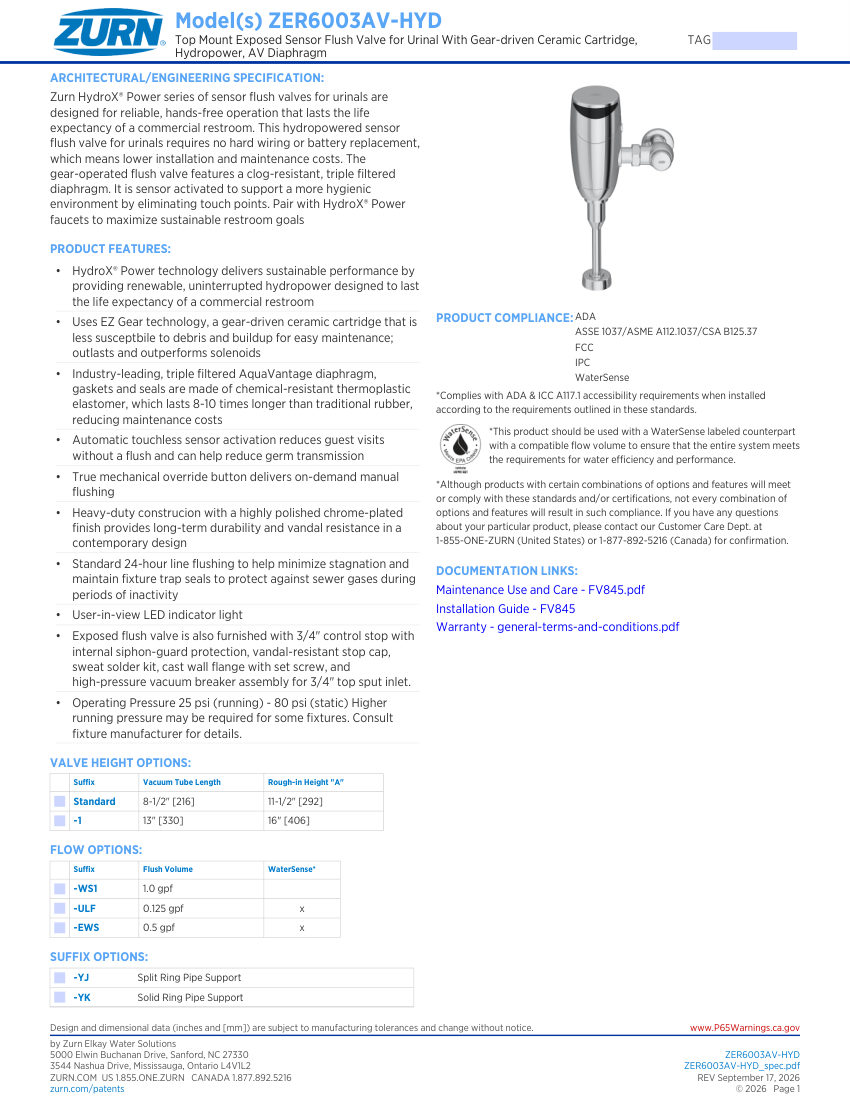

Zurn ZER6003AV-HYD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZER6003AV-HYD
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZER6003AV-HYD
DescriptionZurn Top Mount Exposed Sensor Flush Valve for Urinal (Zurn HydroX Power). Model ZER6003AV-HYD. Hydropowered operation requires no hard wiring or battery replacement; Features gear-driven ceramic cartridge and triple filtered AquaVantage diaphragm; Includes 3/4" control stop with internal siphon-guard and high pressure vacuum breaker; Standard 24-hour line flushing to maintain fixture trap seals. material: Chrome-plated finish, thermoplastic elastomer diaphragm
Connection size3/4" top spout inlet
End connectionSweat solder kit, cast wall flange
Pressure Rating25 psi (running) - 80 psi (st
