DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZER6003AV-SM — ZERZER6003AV-SM

Zurn Sensor Diaphragm Urinal Flush Valve (Zurn ZER-SM Series). Model ZER6003AV-SM. Battery powered automatic sensor with 10 degree angled sensor; Chloramine resistant dual seal diaphragm with clog resistant filtered by-pass; High back pressure vacuum breaker with one piece hex coupling nut; True mechanical override button. material: Chrome plated metal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZER6003AV-SM.pdfData sheet

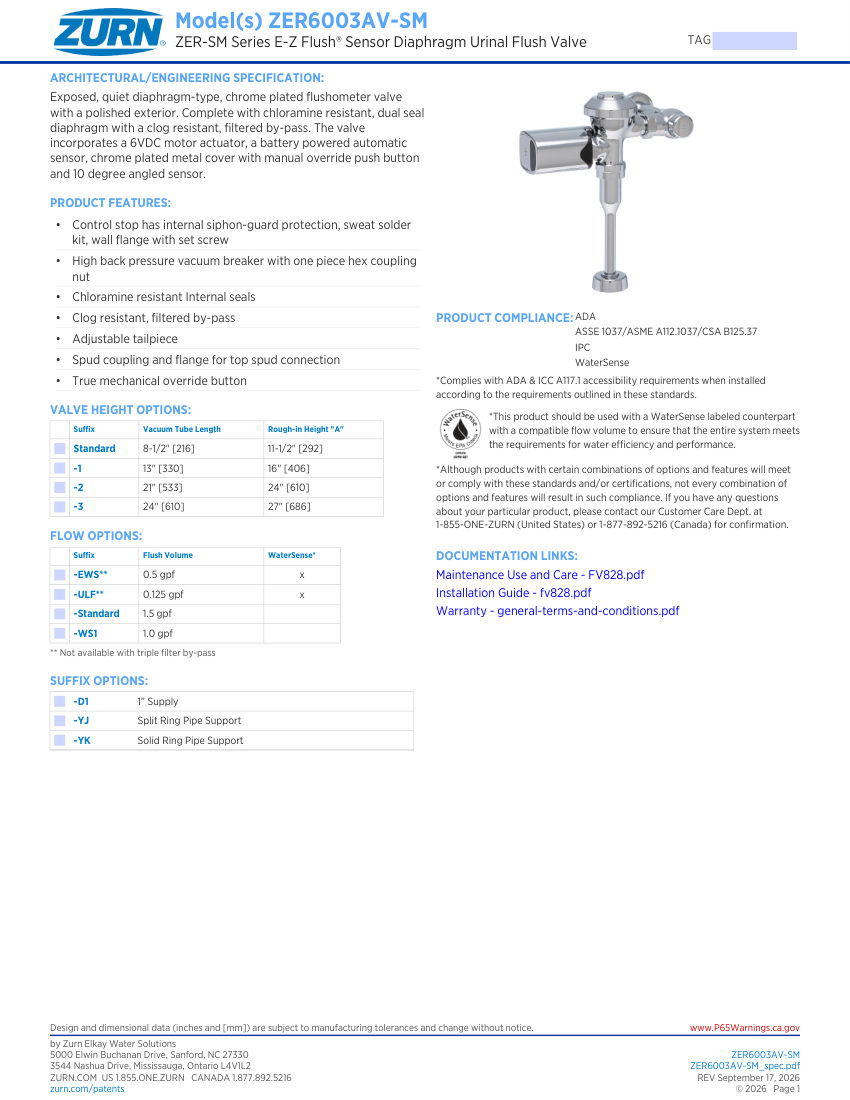

Zurn ZER6003AV-SM cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZER6003AV-SM
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZER6003AV-SM
DescriptionZurn Sensor Diaphragm Urinal Flush Valve (Zurn ZER-SM Series). Model ZER6003AV-SM. Battery powered automatic sensor with 10 degree angled sensor; Chloramine resistant dual seal diaphragm with clog resistant filtered by-pass; High back pressure vacuum breaker with one piece hex coupling nut; True mechanical override button. material: Chrome plated metal
Connection size1" Supply
End connectionSweat solder kit, wall flange with set screw, spud coupling and flange
Flow Rate0.125 gpf, 0.5 gpf, 1.0 gpf, 1.5 gpf
FinishChrome plated, polished exterior
MountingWall flange, adjustable tailpi
