ZurnZF199 — ZF199 Downspout NozzleZF199

Zurn Downspout Nozzle (Drainage). Model ZF199. Includes downspout gasket for cast iron or PVC inlet; Features perforated hinged flapper; Flappers for 2"-4" have one set of stabilization tabs; Flappers for 6"-10" have two sets of stabilization tabs. material: All aluminum body, powder coated face of wall flange, outlet nozzle, and perforated hinged flapper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZF199.pdfData sheet

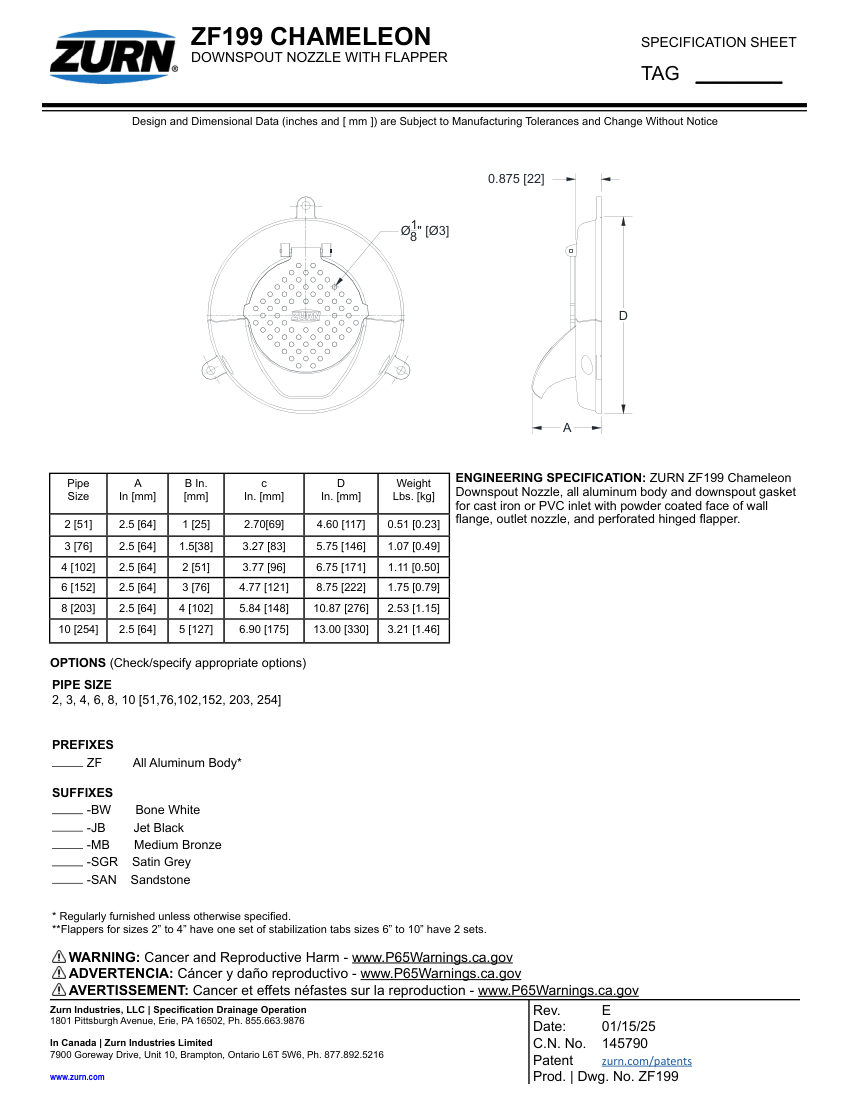

Zurn ZF199 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZF199
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZF199
DescriptionZurn Downspout Nozzle (Drainage). Model ZF199. Includes downspout gasket for cast iron or PVC inlet; Features perforated hinged flapper; Flappers for 2"-4" have one set of stabilization tabs; Flappers for 6"-10" have two sets of stabilization tabs. material: All aluminum body, powder coated face of wall flange, outlet nozzle, and perforated hinged flapper
Connection size2, 3, 4, 6, 8, 10 inches [51, 76, 102, 152, 203, 254 mm]
End connectionCast iron or PVC inlet
FinishBone White, Jet Black, Medium Bronze, Satin Grey, Sandstone
MountingWall flange
DimensionsA: 2.5 in [64 mm], B: 1-
