DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZF806-HDG — ZF806ZF806-HDG

Zurn Fiber Reinforced Polymer Trench Drain System (Trench Drain). Model ZF806-HDG. Channel length is 120 inches [3048 mm]; Channel width is 6 inches [152 mm] with a 4 inch [102 mm] throat; Grate is Galvanized Ductile Iron Slotted, Class C per DIN EN1433; Frame assembly is #10 gage Heavy-Duty Carbon Steel Galvanized. material: Fiber Reinforced Polymer (FRP) channel, Galvanized Ductile Iron grate, Carbon Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZF806-HDG.pdfData sheet

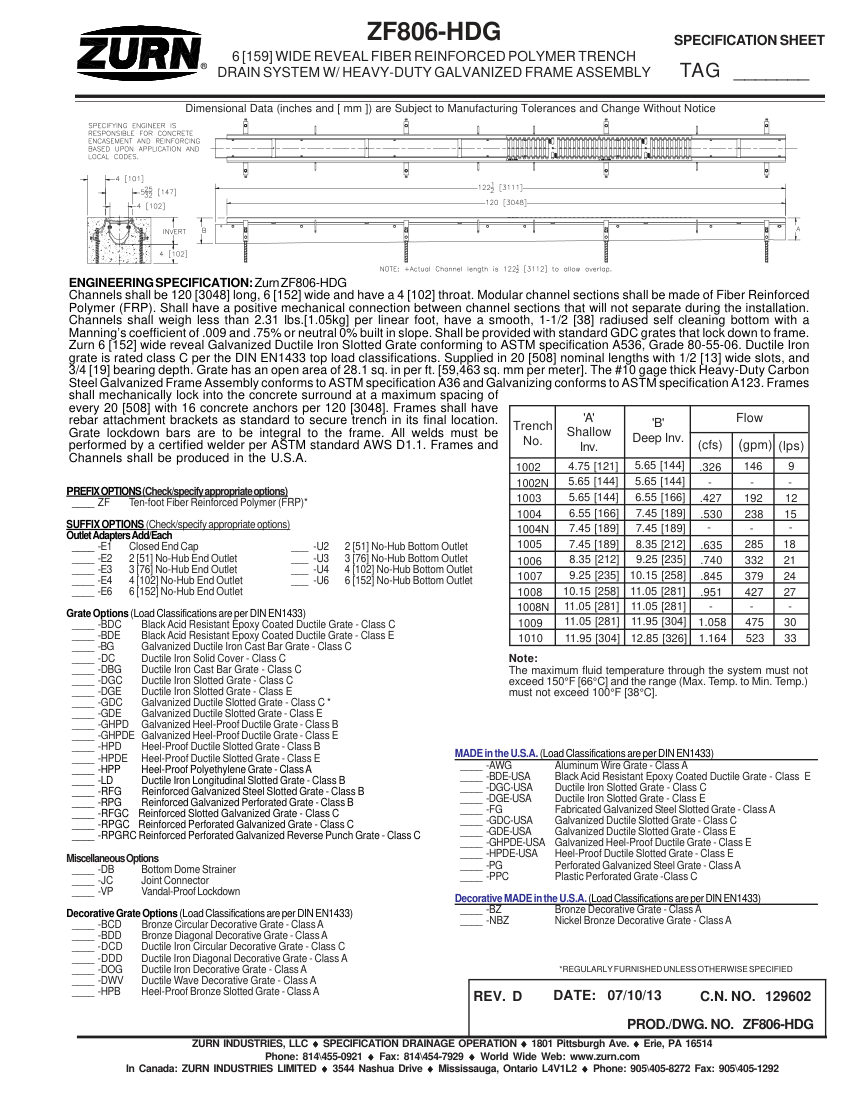

Zurn ZF806-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZF806-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZF806-HDG
DescriptionZurn Fiber Reinforced Polymer Trench Drain System (Trench Drain). Model ZF806-HDG. Channel length is 120 inches [3048 mm]; Channel width is 6 inches [152 mm] with a 4 inch [102 mm] throat; Grate is Galvanized Ductile Iron Slotted, Class C per DIN EN1433; Frame assembly is #10 gage Heavy-Duty Carbon Steel Galvanized. material: Fiber Reinforced Polymer (FRP) channel, Galvanized Ductile Iron grate, Carbon Steel frame
Connection size2, 3, 4, 6 inch No-Hub End or Bottom Outlets
End connectionNo-Hub
Flow RateUp to 475 gpm (30 lps) depending on grate configuration
FinishGalvanized; mounting:
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
