DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZF806-HDS — ZF806ZF806-HDS

Zurn Fiber Reinforced Polymer Trench Drain System (Trench Drain). Model ZF806-HDS. Channel length is 120 inches [3048 mm]; Channel width is 6 inches [152 mm] with a 4 inch [102 mm] throat; Manning's coefficient of 0.009 with 1-1/2 inch [38 mm] radiused self-cleaning bottom; Stainless steel frame conforms to ASTM A240 Type 304. material: Fiber Reinforced Polymer (FRP) channel, Heavy-Duty Stainless Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZF806-HDS.pdfData sheet

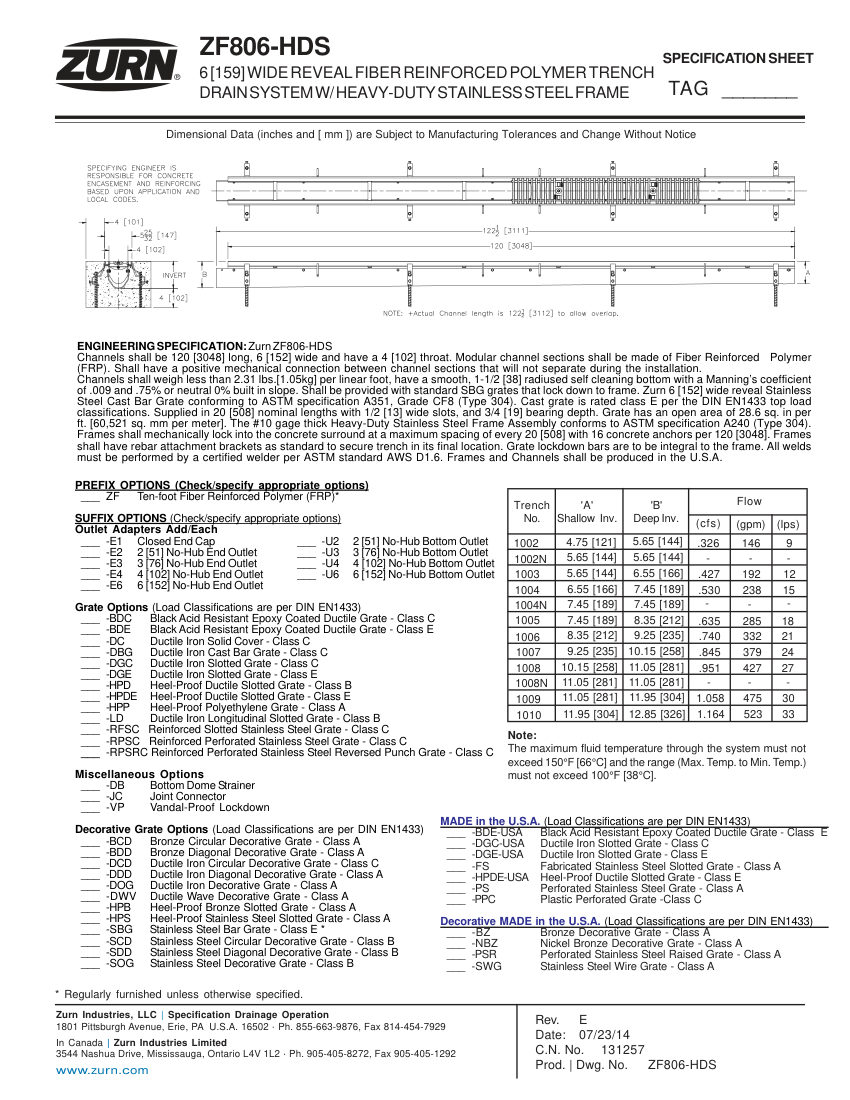

Zurn ZF806-HDS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZF806-HDS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZF806-HDS
DescriptionZurn Fiber Reinforced Polymer Trench Drain System (Trench Drain). Model ZF806-HDS. Channel length is 120 inches [3048 mm]; Channel width is 6 inches [152 mm] with a 4 inch [102 mm] throat; Manning's coefficient of 0.009 with 1-1/2 inch [38 mm] radiused self-cleaning bottom; Stainless steel frame conforms to ASTM A240 Type 304. material: Fiber Reinforced Polymer (FRP) channel, Heavy-Duty Stainless Steel frame
Connection size2, 3, 4, or 6 inch No-Hub outlets
End connectionPositive mechanical connection
Flow RateUp to 523 gpm (12.85 in head)
FinishStainless Steel Cast Bar Grate; mounting
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
