ZurnZF812 — ZF812 Reveal Fiber Reinforced NonZF812

Zurn Fiber Reinforced Polymer Trench Drain System (Trench Drain). Model ZF812. Channel length is 120 inches [3048 mm]; Reveal width is 12 inches [305 mm]; Throat depth is 9-1/4 inches [235 mm]; Manning's coefficient is 0.009. material: Fiber Reinforced Polymer (FRP) channel, Ductile Iron grate, Carbon Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZF812.pdfData sheet

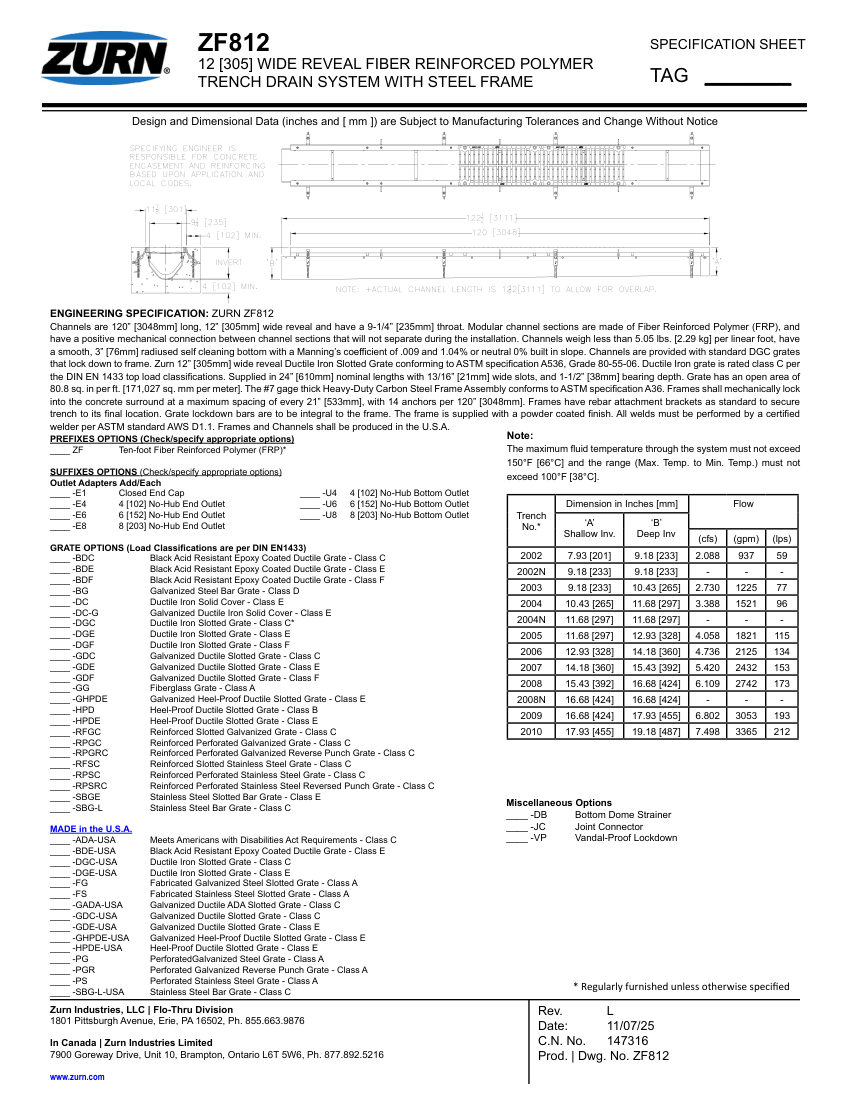

Zurn ZF812 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZF812
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZF812
DescriptionZurn Fiber Reinforced Polymer Trench Drain System (Trench Drain). Model ZF812. Channel length is 120 inches [3048 mm]; Reveal width is 12 inches [305 mm]; Throat depth is 9-1/4 inches [235 mm]; Manning's coefficient is 0.009. material: Fiber Reinforced Polymer (FRP) channel, Ductile Iron grate, Carbon Steel frame
Connection size4, 6, or 8 inch No-Hub End or Bottom Outlet
End connectionPositive mechanical connection
Flow RateUp to 3053 gpm (193 lps) depending on invert depth
FinishPowder coated frame, Ductile Iron grate
MountingMechanical lock into concrete surround, rebar attachmen
