Zurn Trench Drain System (Trench Drain). Model ZF812-HDG. 12 [305] wide reveal with 9-1/4 [235] throat; Manning's coefficient of 0.009; Galvanized Ductile Iron Slotted Grate rated Class C per DIN EN 1433; Frame conforms to ASTM A36 with galvanizing per ASTM A123. material: Fiber Reinforced Polymer (FRP) channel, Galvanized Ductile Iron grate, Heavy-Duty Galvanized Carbon Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZF812-HDG.pdfData sheet

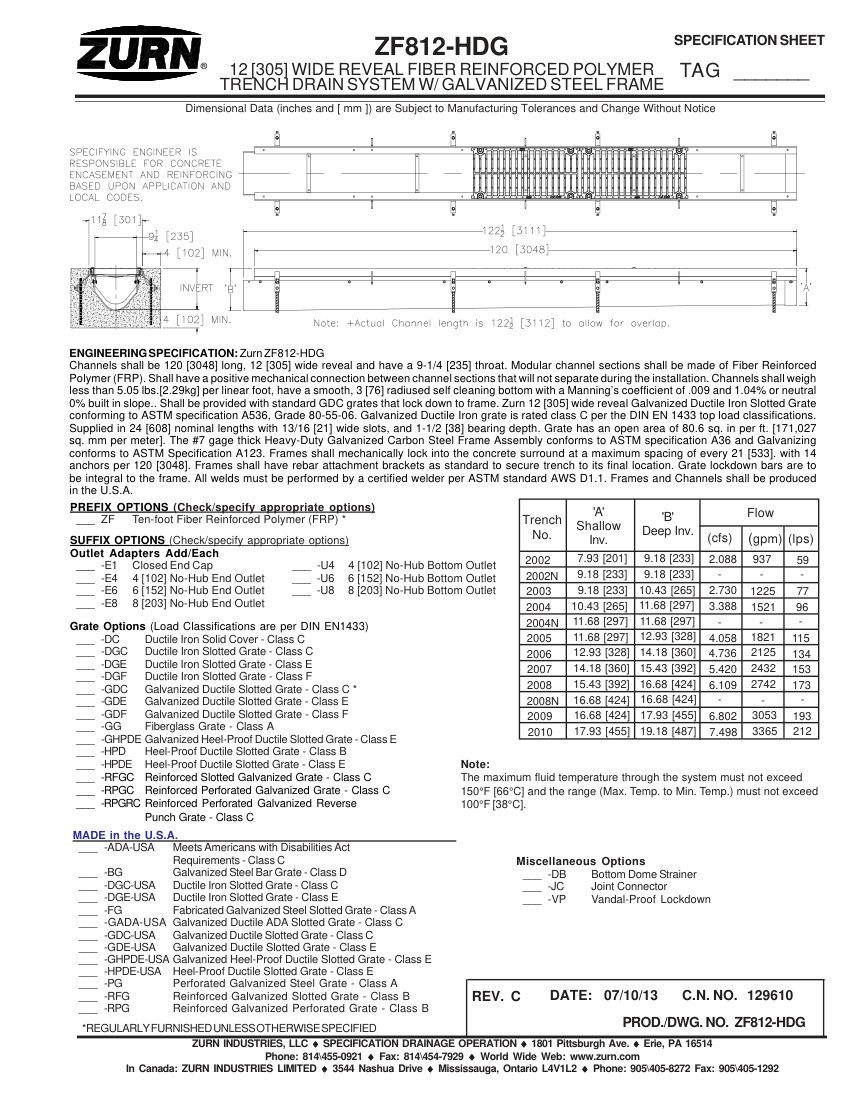

Zurn ZF812-HDG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZF812-HDG
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZF812-HDG
DescriptionZurn Trench Drain System (Trench Drain). Model ZF812-HDG. 12 [305] wide reveal with 9-1/4 [235] throat; Manning's coefficient of 0.009; Galvanized Ductile Iron Slotted Grate rated Class C per DIN EN 1433; Frame conforms to ASTM A36 with galvanizing per ASTM A123. material: Fiber Reinforced Polymer (FRP) channel, Galvanized Ductile Iron grate, Heavy-Duty Galvanized Carbon Steel frame
Connection size4 [102], 6 [152], 8 [203] No-Hub Bottom/End Outlets
End connectionPositive mechanical connection
Flow RateUp to 7.498 cfs [3365 gpm] depending on slope
FinishGalvanized
MountingMechanical
