DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZF812-HDS — Zurn ZF812ZF812-HDS

Zurn Fiber Reinforced Polymer Trench Drain System (Trench Drain). Model ZF812-HDS. Channel length is 120 inches [3048mm]; Reveal width is 12 inches [305mm]; Throat depth is 9-1/4 inches [235mm]; Grate is Class C per DIN EN 1433. material: Fiber Reinforced Polymer (FRP) channel, Stainless Steel (Type 304) frame and grate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZF812-HDS.pdfData sheet

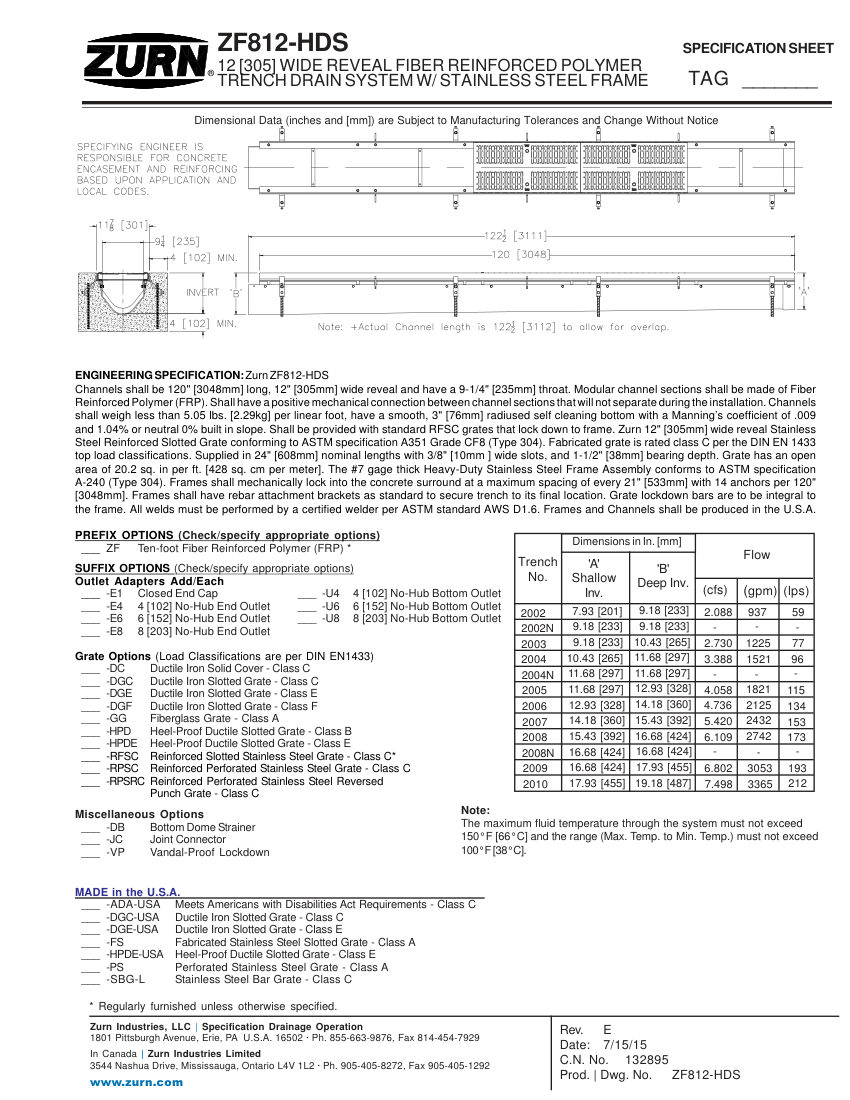

Zurn ZF812-HDS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZF812-HDS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZF812-HDS
DescriptionZurn Fiber Reinforced Polymer Trench Drain System (Trench Drain). Model ZF812-HDS. Channel length is 120 inches [3048mm]; Reveal width is 12 inches [305mm]; Throat depth is 9-1/4 inches [235mm]; Grate is Class C per DIN EN 1433. material: Fiber Reinforced Polymer (FRP) channel, Stainless Steel (Type 304) frame and grate
Connection size4, 6, or 8 inch No-Hub Bottom/End Outlets
End connectionPositive mechanical connection
Flow RateUp to 7.498 cfs (3365 gpm) at 19.18 inch depth
FinishStainless Steel
MountingMechanical lock into concrete surround with rebar attachment brackets.
