DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZFV812 — ZFV812 Trench DrainZFV812

Zurn Trench Drain System (Trench Drain). Model ZFV812. Channel length is 120 inches [3048mm] with a 12 inch [305mm] wide reveal; Ductile Iron Slotted Grate conforms to ASTM A536 Grade 80-55-06 and DIN EN 1433 Class C; Carbon Steel Frame conforms to ASTM A36 with powder coated finish; Manning's coefficient of 0.009 with 1.04% built-in slope. material: Fiber Reinforced Vinylester channel, Ductile Iron grate, Carbon Steel frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZFV812.pdfData sheet

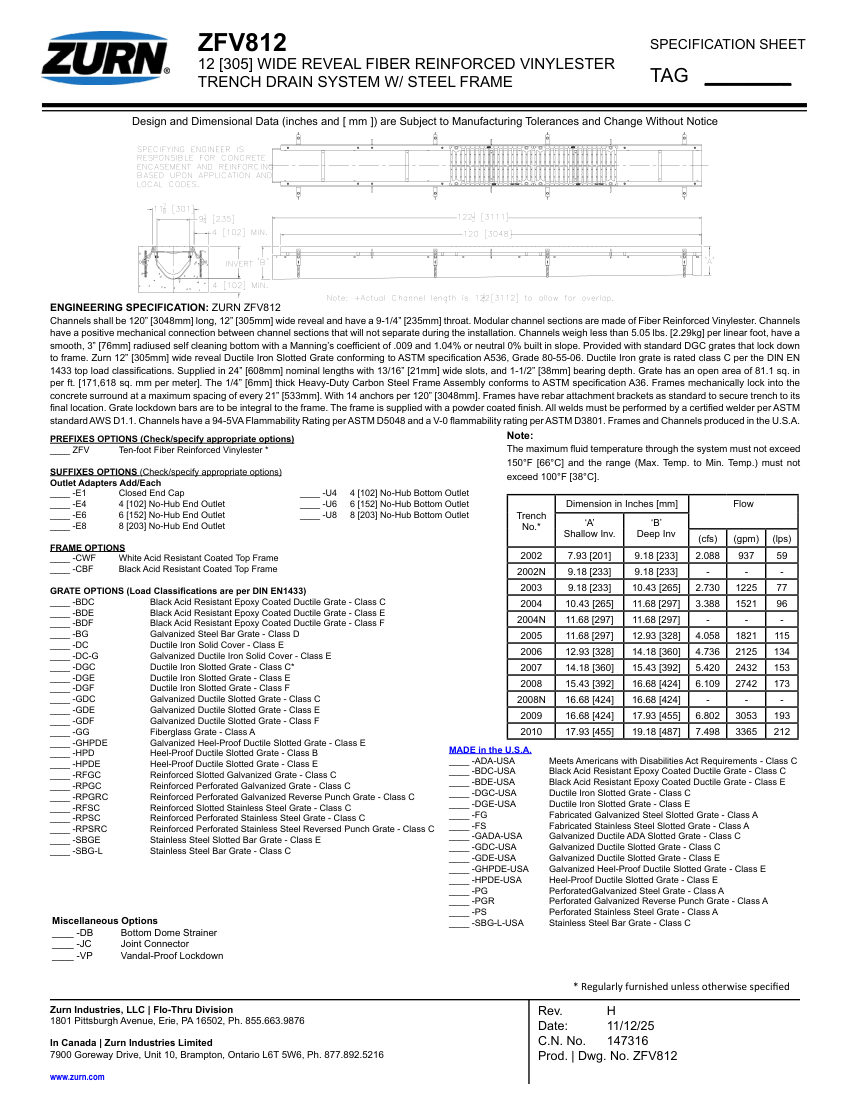

Zurn ZFV812 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZFV812
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZFV812
DescriptionZurn Trench Drain System (Trench Drain). Model ZFV812. Channel length is 120 inches [3048mm] with a 12 inch [305mm] wide reveal; Ductile Iron Slotted Grate conforms to ASTM A536 Grade 80-55-06 and DIN EN 1433 Class C; Carbon Steel Frame conforms to ASTM A36 with powder coated finish; Manning's coefficient of 0.009 with 1.04% built-in slope. material: Fiber Reinforced Vinylester channel, Ductile Iron grate, Carbon Steel frame
Connection size4, 6, or 8 inch No-Hub End or Bottom Outlet
End connectionNo-Hub
Flow RateUp to 3053 gpm (193 lps) at 16.68 inch invert
FinishPowder coated frame,
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click

From fixture schedule to submittal in minutes.

How the Builder works →
  1. 01

    Describe the job

    Paste a fixture schedule, upload a spec section, or just list catalog numbers and quantities.

  2. 02

    The agent matches & assembles

    Products are matched from the indexed library and current cut sheets are pulled into a formatted package with cover and TOC.

  3. 03

    Share for review

    Send one link for sign-off, then roll the approved package into a quote or PO without retyping a part number.

More from Zurn

All 1808 cut sheets →
Browse every manufacturer in the cut sheet library →

Put the ZFV812 in a submittal package.

Describe the job and the AI agent builds the whole package — cut sheets pulled, schedule matched, cover and TOC included.

Get started freeNo card required
