DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZH6197AV

Zurn Concealed Hydraulic Actuation Flush Valve for Urinals (Flush Valves). Model ZH6197AV. Hydraulic push button actuator with non-hold-open feature; Chloramine resistant dual seal diaphragm with triple filtered by-pass; Includes 3/4" wheel handle angle stop with siphon-guard backcheck; ADA compliant actuator. material: Rough brass, AquaVantage TPE diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZH6197AV.pdfData sheet

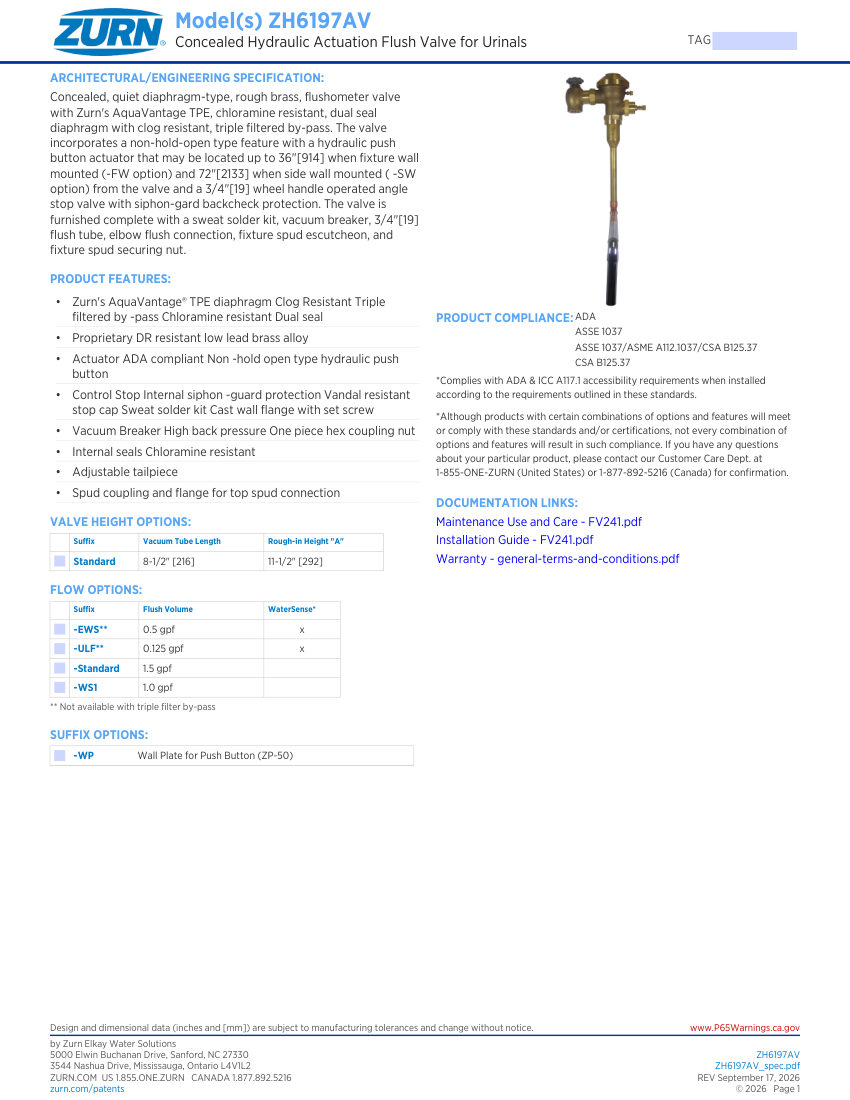

Zurn ZH6197AV cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZH6197AV
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZH6197AV
DescriptionZurn Concealed Hydraulic Actuation Flush Valve for Urinals (Flush Valves). Model ZH6197AV. Hydraulic push button actuator with non-hold-open feature; Chloramine resistant dual seal diaphragm with triple filtered by-pass; Includes 3/4" wheel handle angle stop with siphon-guard backcheck; ADA compliant actuator. material: Rough brass, AquaVantage TPE diaphragm
Connection size3/4" [19]
End connectionSweat solder, Elbow flush connection
Flow Rate0.125 gpf, 0.5 gpf, 1.0 gpf, 1.5 gpf
MountingConcealed, Wall mounted
ComplianceADA, ASSE 1037, ASME A112.1037, CSA B125.37, WaterSense.
