DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZH8820LR-ZH8828LR

Zurn Heavy Duty Angle Stop with Flexible Lavatory Supply (Angle Stop Valves). Model ZH8820LR-ZH8828LR. Includes two heavy duty angle stops and two 12 [305] flexible chrome plated copper lavatory risers; Handles available as round wheel (LR) or loose key (LRLK); ZH8827 and ZH8828 models include 5 [127] chrome plated copper extension tubes; ZH8827 and ZH8828 models feature deep bell steel flanges. material: Solid brass, chrome plated copper, chrome plated steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZH8820LR-ZH8828LR.pdfData sheet

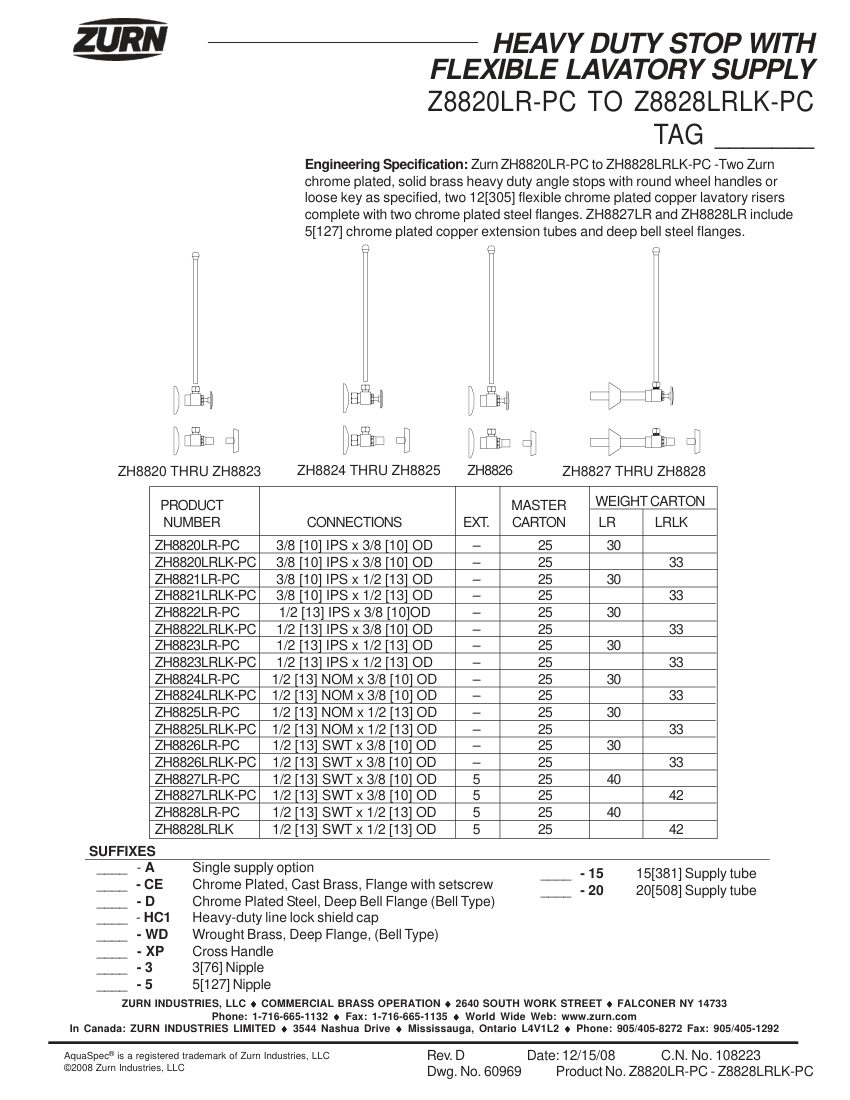

Zurn ZH8820LR-ZH8828LR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZH8820LR-ZH8828LR
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZH8820LR-ZH8828LR
DescriptionZurn Heavy Duty Angle Stop with Flexible Lavatory Supply (Angle Stop Valves). Model ZH8820LR-ZH8828LR. Includes two heavy duty angle stops and two 12 [305] flexible chrome plated copper lavatory risers; Handles available as round wheel (LR) or loose key (LRLK); ZH8827 and ZH8828 models include 5 [127] chrome plated copper extension tubes; ZH8827 and ZH8828 models feature deep bell steel flanges. material: Solid brass, chrome plated copper, chrome plated steel
Connection size3/8 [10] IPS, 1/2 [13] IPS, 1/2 [13] NOM, 1/2 [13] SWT
End connectionIPS, NOM, SWT, OD
FinishChrome Plated; mounti
