DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZL1M

Zurn Wall Hung Lavatory System (Zurn One Manual Hand Washing System). Model Z.L1.M. Includes Z5344 lavatory, Z7440-XL-FC faucet, Z8743-PC grid drain, Z8700-8B-PC P-trap, and Z8804-XL-LR-LK-PC supply stops; Faucet features ceramic disc cartridge with temperature limit stop; Lavatory has front overflow and is compatible with concealed arm carrier systems; Faucet manufactured in US; Fixture manufactured in China. material: Vitreous china (lavatory), Chrome-plated cast brass (faucet, drain, trap, stops)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZL1M.pdfData sheet

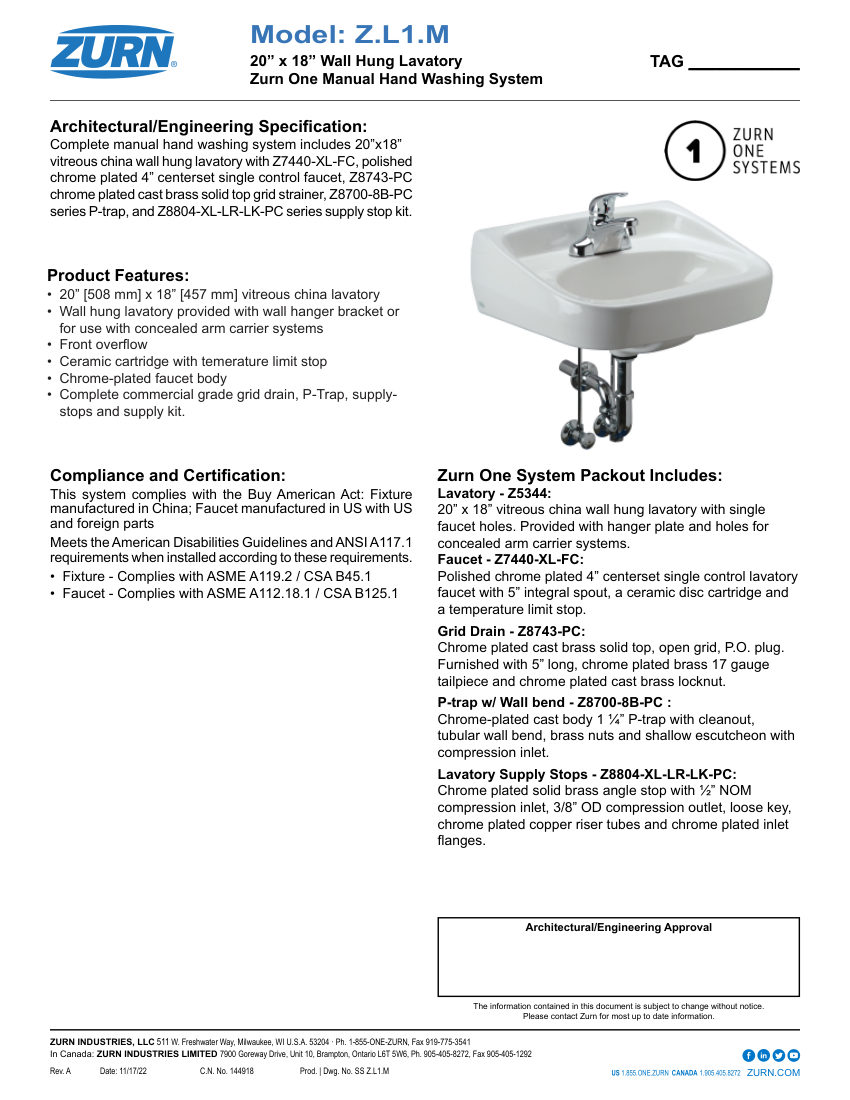

Zurn ZL1M cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZL1M
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZL1M
DescriptionZurn Wall Hung Lavatory System (Zurn One Manual Hand Washing System). Model Z.L1.M. Includes Z5344 lavatory, Z7440-XL-FC faucet, Z8743-PC grid drain, Z8700-8B-PC P-trap, and Z8804-XL-LR-LK-PC supply stops; Faucet features ceramic disc cartridge with temperature limit stop; Lavatory has front overflow and is compatible with concealed arm carrier systems; Faucet manufactured in US; Fixture manufactured in China. material: Vitreous china (lavatory), Chrome-plated cast brass (faucet, drain, trap, stops)
Connection size1 1/4" (P-trap), 1/2" NOM (supply inlet), 3/8" OD (supply outlet); endConnecti
