ZurnZPD1-H — POD Pro HZPD1-H

Zurn Shallow Floor Drain (Floor Drain). Model ZPD1-H. Designed exclusively for vinyl sheet flooring 0.8 mm to 6 mm thick; Includes 12 in [350 mm] long independent drop-in bottom outlet; Features stainless steel membrane clamp and frame with integral seepage slots; Strainer open area is 6.6 in² [45.6 cm²]. material: Type 304 cast stainless steel body, nickel bronze or stainless steel top

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZPD1-H.pdfData sheet

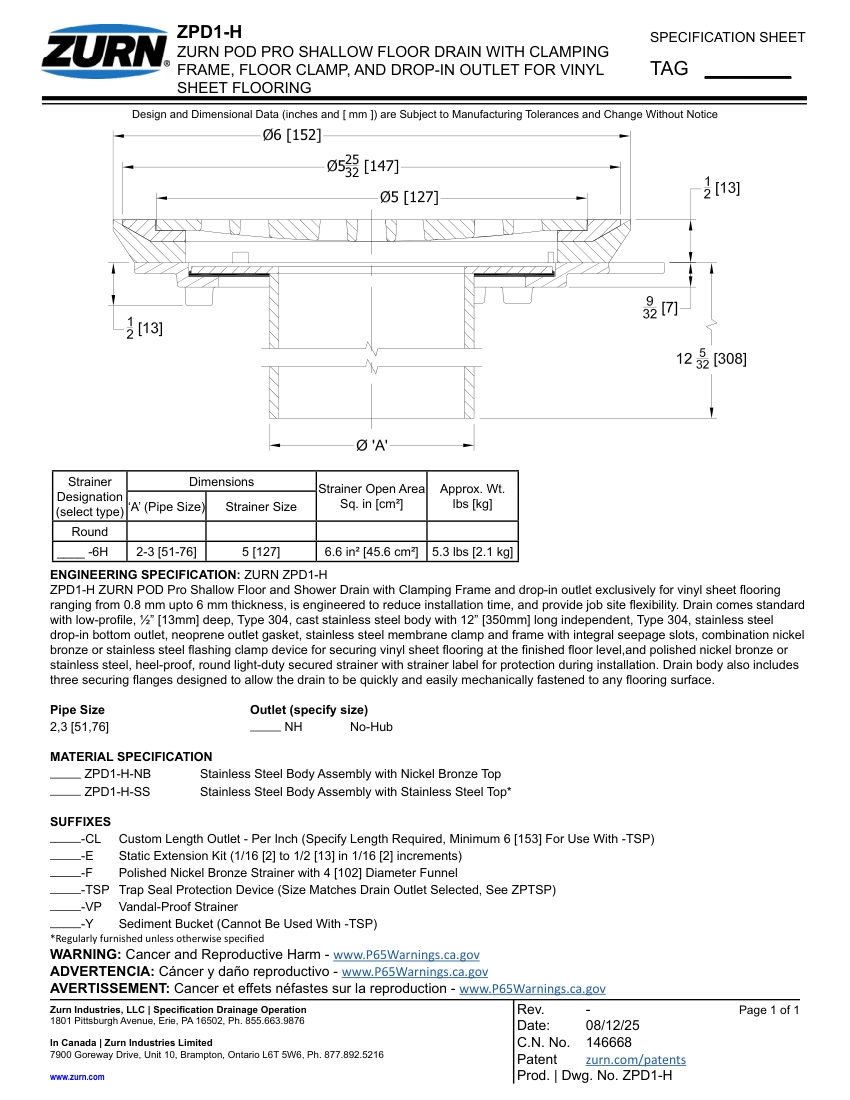

Zurn ZPD1-H cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZPD1-H
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZPD1-H
DescriptionZurn Shallow Floor Drain (Floor Drain). Model ZPD1-H. Designed exclusively for vinyl sheet flooring 0.8 mm to 6 mm thick; Includes 12 in [350 mm] long independent drop-in bottom outlet; Features stainless steel membrane clamp and frame with integral seepage slots; Strainer open area is 6.6 in² [45.6 cm²]. material: Type 304 cast stainless steel body, nickel bronze or stainless steel top
Connection size2-3 in [51-76 mm]
End connectionNo-Hub (NH)
FinishPolished nickel bronze or stainless steel
MountingClamping frame with drop-in outlet for vinyl sheet flooring
DimensionsStrainer siz
