DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZPD1-LR — POD Pro Ligature Resistant Round Floor DrainZPD1-LR

Zurn Shallow Floor Drain (Floor Drain). Model ZPD1-LR. Ligature resistant strainer with 1.9 sq in [12.3 cm²] open area; Shallow profile with 1/2 in [13 mm] deep body; Includes neoprene outlet gasket and membrane clamp; Vandal-proof and heel-proof strainer design. material: Type 304 cast stainless steel body, stainless steel strainer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZPD1-LR.pdfData sheet

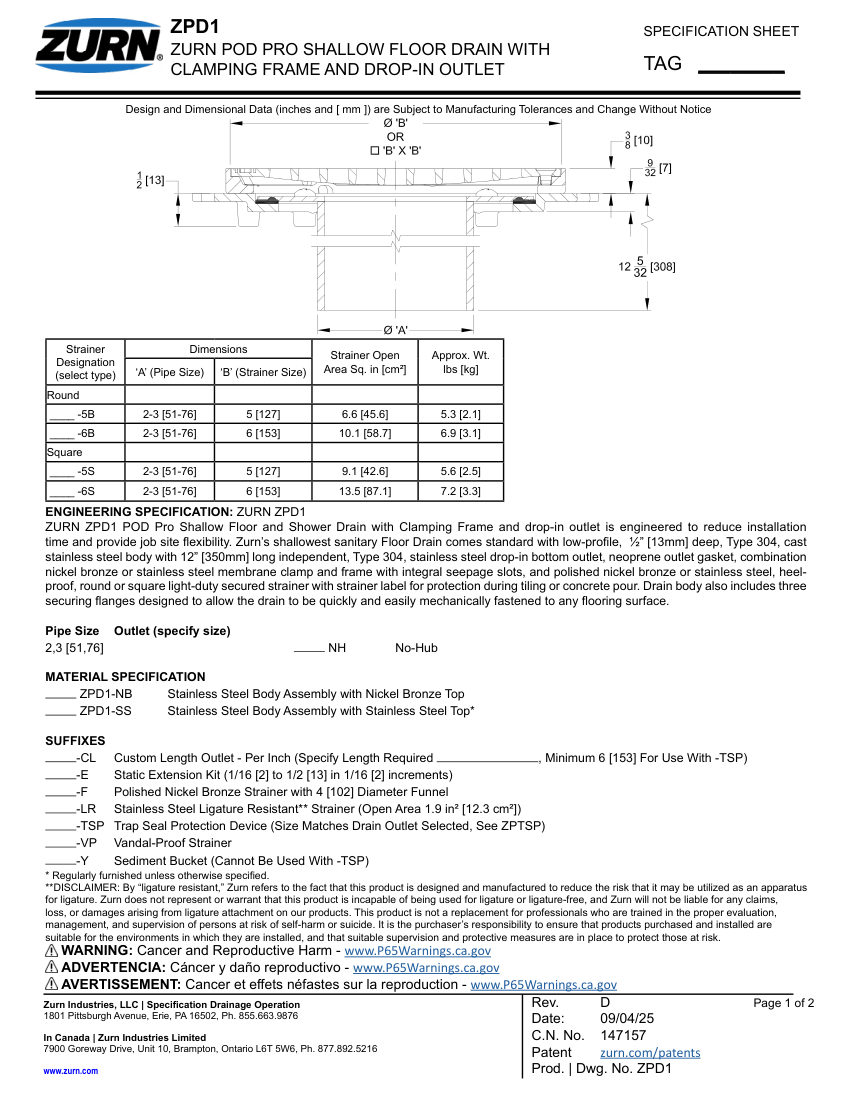

Zurn ZPD1-LR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZPD1-LR
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZPD1-LR
DescriptionZurn Shallow Floor Drain (Floor Drain). Model ZPD1-LR. Ligature resistant strainer with 1.9 sq in [12.3 cm²] open area; Shallow profile with 1/2 in [13 mm] deep body; Includes neoprene outlet gasket and membrane clamp; Vandal-proof and heel-proof strainer design. material: Type 304 cast stainless steel body, stainless steel strainer
Connection size2-3 in [51-76 mm]
End connectionNo-Hub
FinishStainless Steel
MountingClamping frame with three securing flanges
DimensionsBody depth 1/2 in [13 mm], Outlet length 12 in [350 mm], Strainer size 5 or 6 in [127 or 153 mm].

Also cataloged as: ZPD1
