DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZS415BS

Zurn Floor and shower drain (Drainage). Model ZS415BS. Includes 'Type BS' stainless steel, heel-proof, medium-duty strainer assembly; Strainer open area ranges from 6-3/4 to 26-1/2 [44-171] sq. in.; Weight ranges from 10 to 17 lbs [4-8 kg] depending on size; Available with options for Acid Resisting Epoxy, Galvanized, or Trap Primer Connection. material: Dura-Coated cast iron body, Type 304 (CF8) stainless steel top

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZS415BS.pdfData sheet

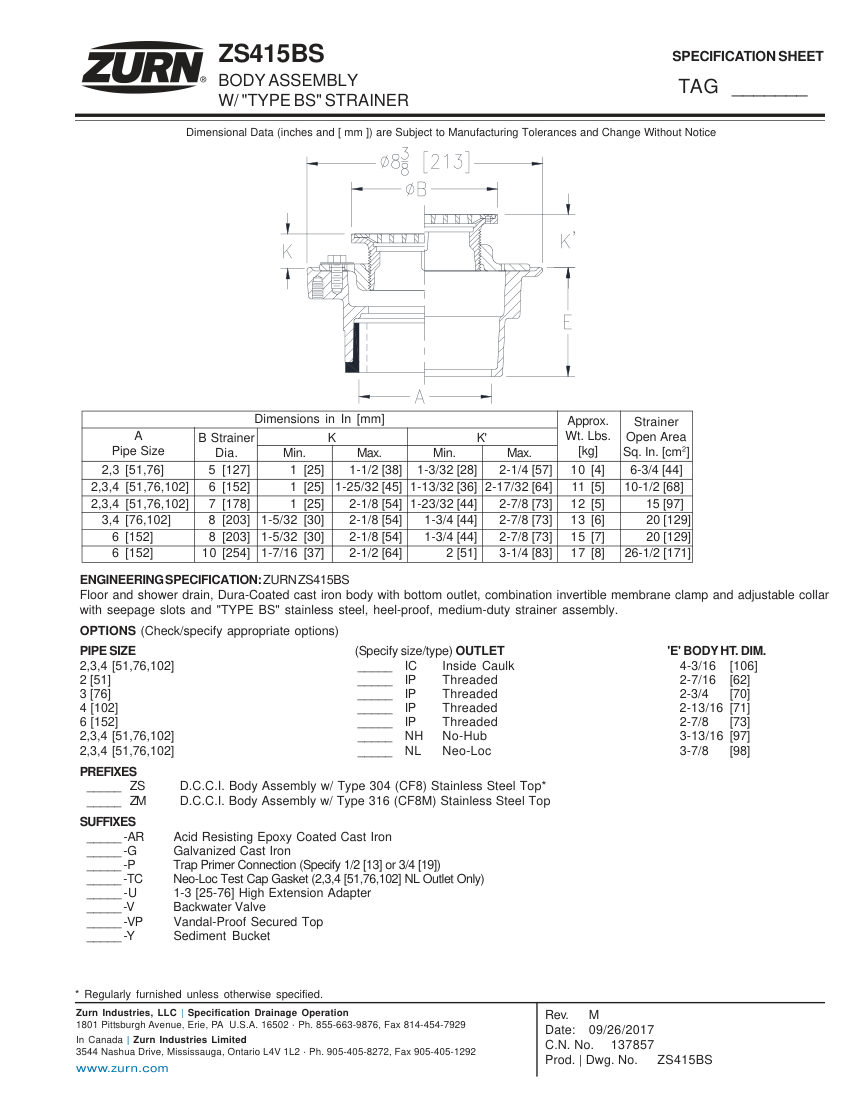

Zurn ZS415BS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZS415BS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZS415BS
DescriptionZurn Floor and shower drain (Drainage). Model ZS415BS. Includes 'Type BS' stainless steel, heel-proof, medium-duty strainer assembly; Strainer open area ranges from 6-3/4 to 26-1/2 [44-171] sq. in.; Weight ranges from 10 to 17 lbs [4-8 kg] depending on size; Available with options for Acid Resisting Epoxy, Galvanized, or Trap Primer Connection. material: Dura-Coated cast iron body, Type 304 (CF8) stainless steel top
Connection size2, 3, 4, 6 [51, 76, 102, 152] mm
End connectionBottom outlet (IC, IP, NH, NL)
FinishDura-Coated
MountingInvertible membrane clamp and adjustable collar; di
