DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZW204 — Zurn Wilkins ZW204ZW204

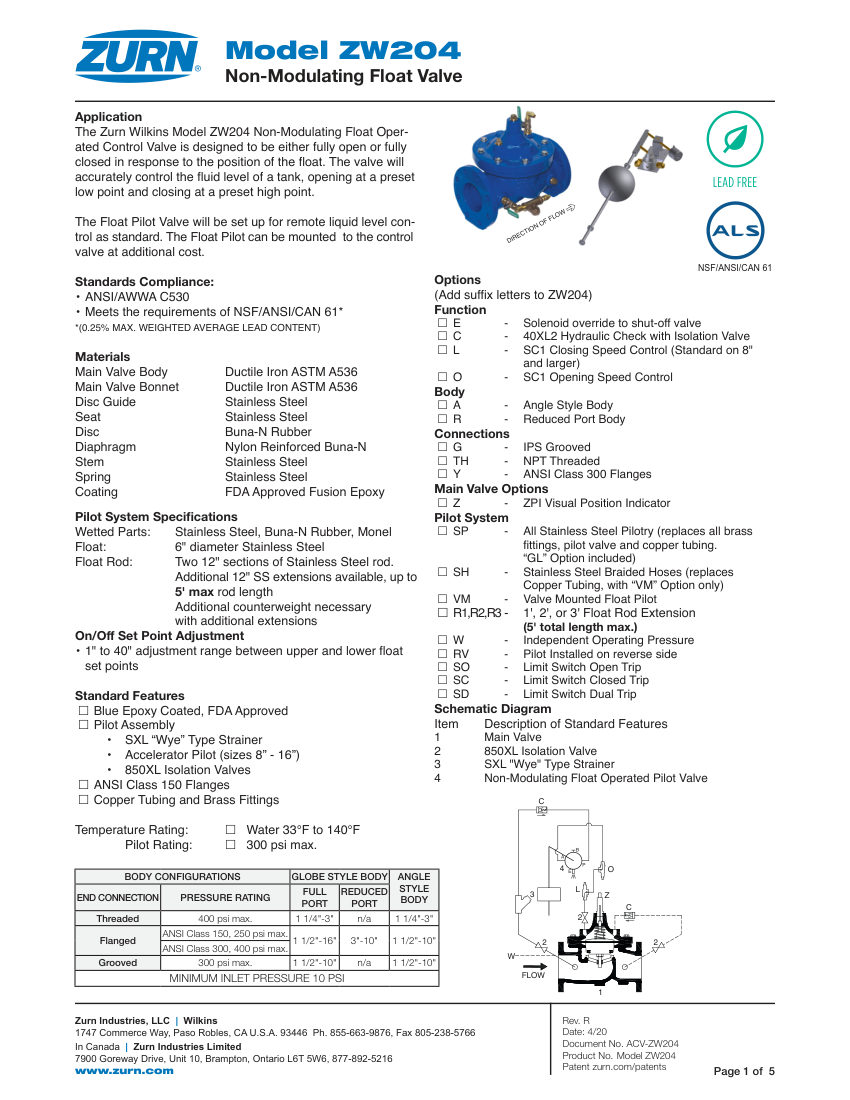

Name: Zurn ZW204 — Zurn Wilkins ZW204
Brand: Zurn
SKU: ZW204

Zurn Non-Modulating Float Operated Control Valve (Zurn Wilkins). Model ZW204. Non-modulating on/off control for tank liquid levels

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	ZW204
Description	Zurn Non-Modulating Float Operated Control Valve (Zurn Wilkins). Model ZW204. Non-modulating on/off control for tank liquid levels
Float diameter	6 inches Stainless Steel; On/Off set point adjustment range: 1 inch to 40 inches
Temperature rating	33°F to 140°F for water. material: Ductile Iron ASTM A536 body, Stainless Steel disc guide/seat/stem, Buna-N Rubber disc
End connection	ANSI Class 150 Flanges (Standard), IPS Grooved, NPT Threaded, ANSI Class 300 Flanges
Pressure Rating	300 psi max (Pilot)
Finish	FDA Approved Fusion Epoxy
Mounting	Globe Style or Angle Style Body; compliance:
