DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZW205

Zurn Pilot Operated Pressure Relief / Pressure Sustaining Valve (Pressure Relief / Pressure Sustaining Valve). Model ZW205. Maintains pre-determined upstream pressure by modulating between closed (sustaining) and open (relief) positions

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZW205.pdfData sheet

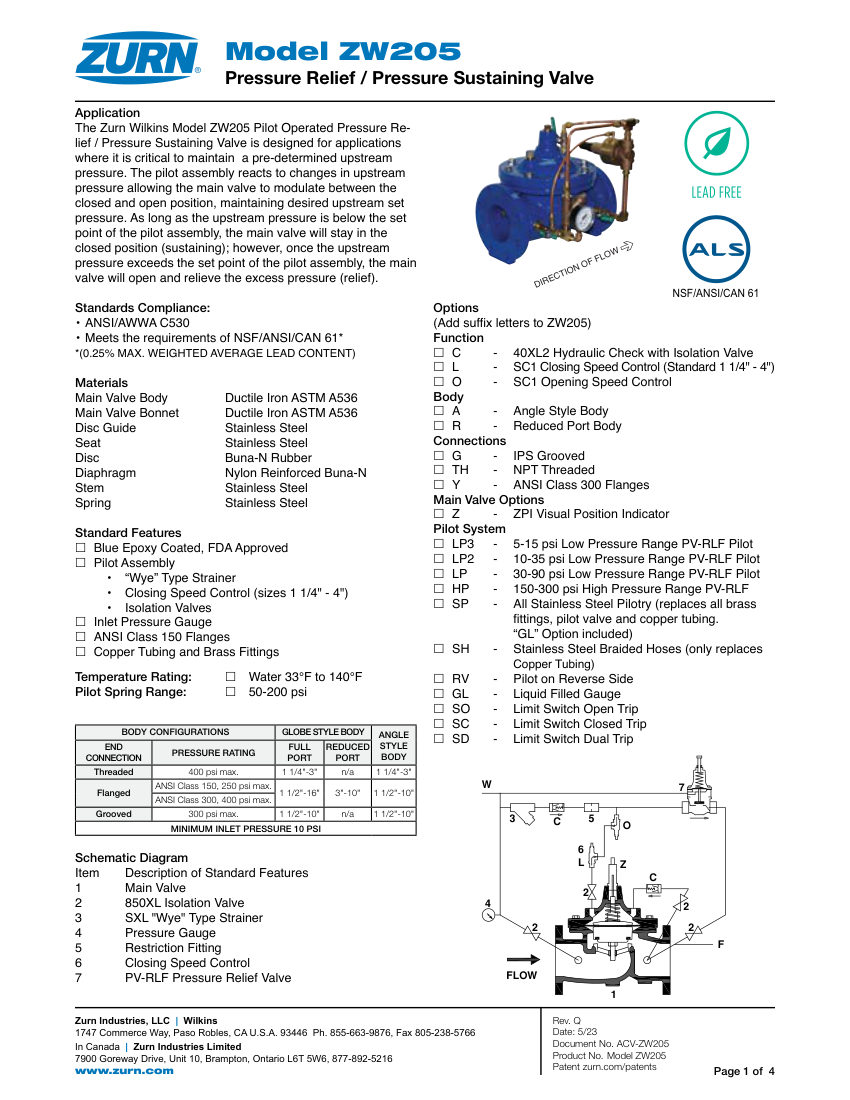

Zurn ZW205 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZW205
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZW205
DescriptionZurn Pilot Operated Pressure Relief / Pressure Sustaining Valve (Pressure Relief / Pressure Sustaining Valve). Model ZW205. Maintains pre-determined upstream pressure by modulating between closed (sustaining) and open (relief) positions
Pilot spring range50-200 psi
Operating temperature33°F to 140°F
Minimum inlet pressure10 psi. material: Ductile Iron ASTM A536 (Body/Bonnet), Stainless Steel (Disc Guide/Seat/Stem/Spring), Buna-N Rubber (Disc), Nylon Reinforced Buna-N (Diaphragm)
Connection size1 1/4" - 16"
End connectionNPT Threaded, ANSI Class 150/300 Flanges, IPS Grooved; pressu
