DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

ZurnZW205E

Zurn Pilot Operated Pressure Relief Valve with Solenoid Shut-off Valve (Pressure Relief Valve). Model ZW205E. Pilot Spring Range: 15-150 psi; Max Operating Pressure Differential: 200 psi

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZW205E.pdfData sheet

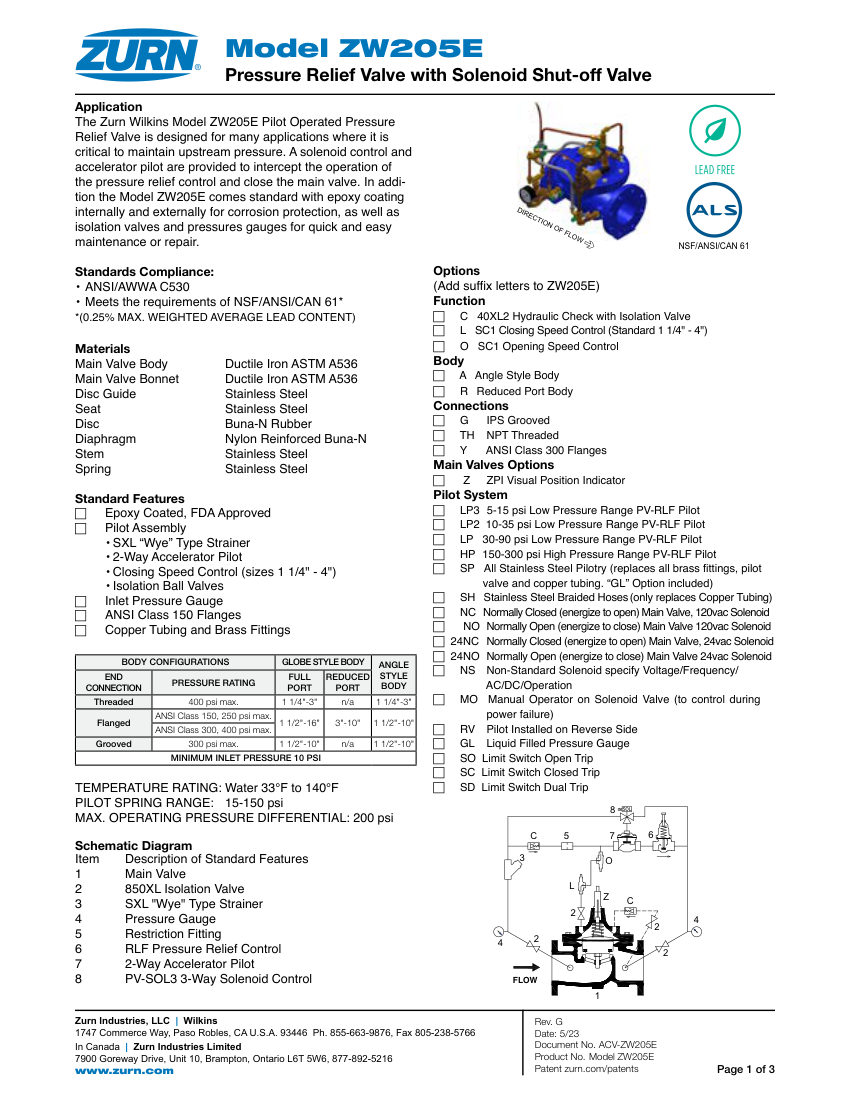

Zurn ZW205E cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZW205E
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZW205E
DescriptionZurn Pilot Operated Pressure Relief Valve with Solenoid Shut-off Valve (Pressure Relief Valve). Model ZW205E. Pilot Spring Range: 15-150 psi; Max Operating Pressure Differential: 200 psi
Temperature Rating33°F to 140°F
Minimum Inlet Pressure10 psi. material: Ductile Iron ASTM A536 (Body/Bonnet), Stainless Steel (Disc Guide/Seat/Stem/Spring), Buna-N Rubber (Disc), Nylon Reinforced Buna-N (Diaphragm)
Connection size1 1/4"-16" (Threaded/Flanged/Grooved)
End connectionThreaded, Flanged (ANSI Class 150/300), Grooved
Pressure RatingThreaded: 400 psi max
Flanged250 psi (Class 150) / 40
