DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

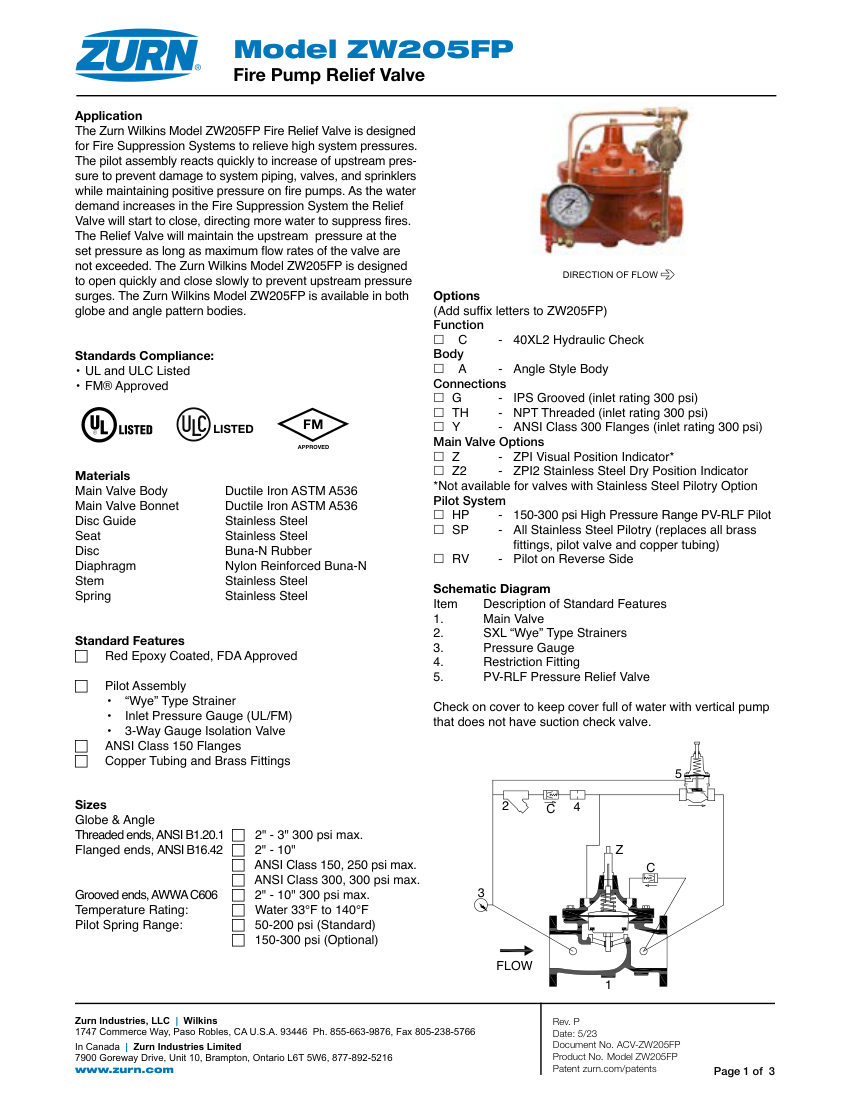

ZurnZW205FP

Name: Zurn ZW205FP
Brand: Zurn
SKU: ZW205FP

Zurn Fire Pump Relief Valve (Fire Suppression Valves). Model ZW205FP. Pilot Spring Range: 50-200 psi (Standard), 150-300 psi (Optional)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	ZW205FP
Description	Zurn Fire Pump Relief Valve (Fire Suppression Valves). Model ZW205FP. Pilot Spring Range: 50-200 psi (Standard), 150-300 psi (Optional)
Temperature Rating	Water 33°F to 140°F
Standard Features	Wye Type Strainer, Inlet Pressure Gauge, 3-Way Gauge Isolation Valve, Copper Tubing and Brass Fittings; Available in Globe and Angle pattern bodies. material: Ductile Iron ASTM A536 (Body/Bonnet), Stainless Steel (Disc Guide/Seat/Stem/Spring), Buna-N Rubber (Disc), Nylon Reinforced Buna-N (Diaphragm)
Connection size	2" - 10"
End connection	Threaded (NPT), Flanged (ANSI Class 150/300), Grooved (IPS)
