ZurnZW207

Zurn Excess Pressure Shutdown Valve (Valves). Model ZW207. Closes to protect downstream components when upstream pressure exceeds pilot set point; Standard features include pilot assembly, isolation valves, and inlet pressure gauge; Temperature rating for water is 33°F to 140°F; Pilot spring range is 50-200 psi. material: Ductile Iron ASTM A536

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZW207.pdfData sheet

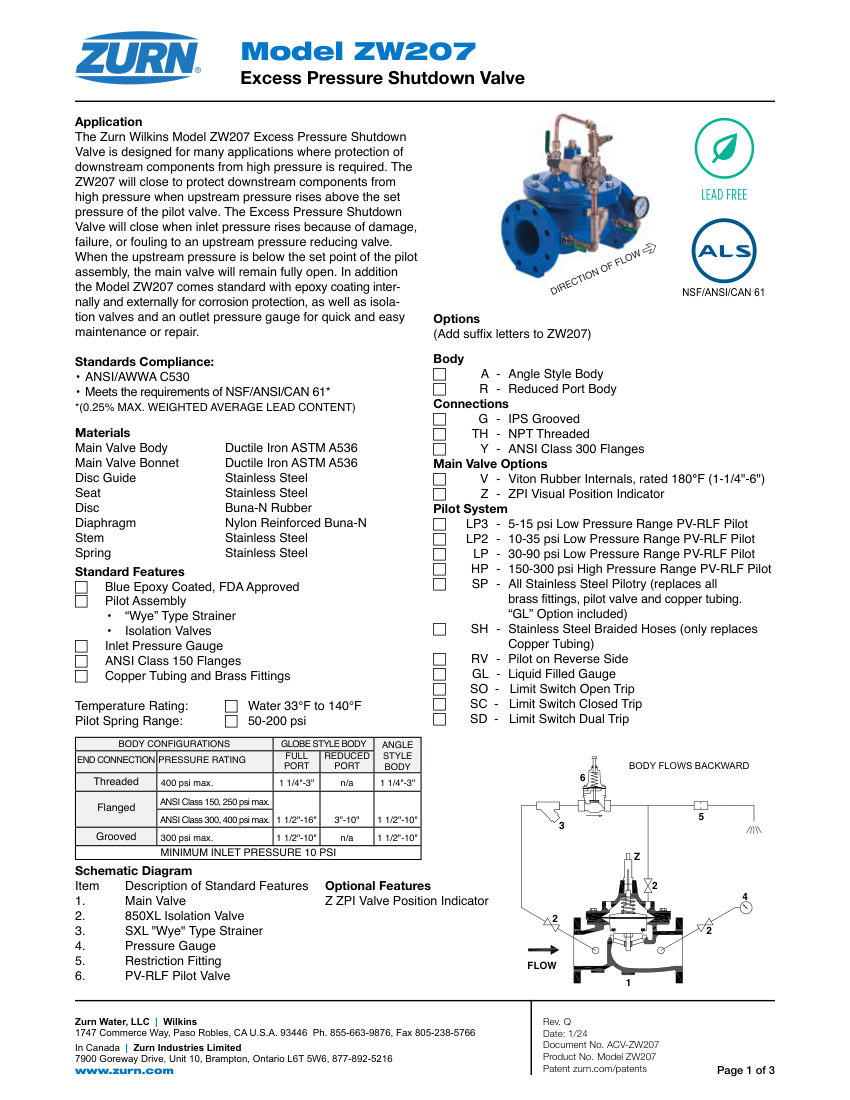

Zurn ZW207 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZW207
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZW207
DescriptionZurn Excess Pressure Shutdown Valve (Valves). Model ZW207. Closes to protect downstream components when upstream pressure exceeds pilot set point; Standard features include pilot assembly, isolation valves, and inlet pressure gauge; Temperature rating for water is 33°F to 140°F; Pilot spring range is 50-200 psi. material: Ductile Iron ASTM A536
Connection size1-1/4"-16"
End connectionThreaded, Flanged, Grooved
Pressure Rating400 psi max (Threaded), 250/400 psi (Flanged), 300 psi (Grooved)
FinishBlue Epoxy Coated
ComplianceANSI/AWWA C530, NSF/ANSI/CAN 61.
