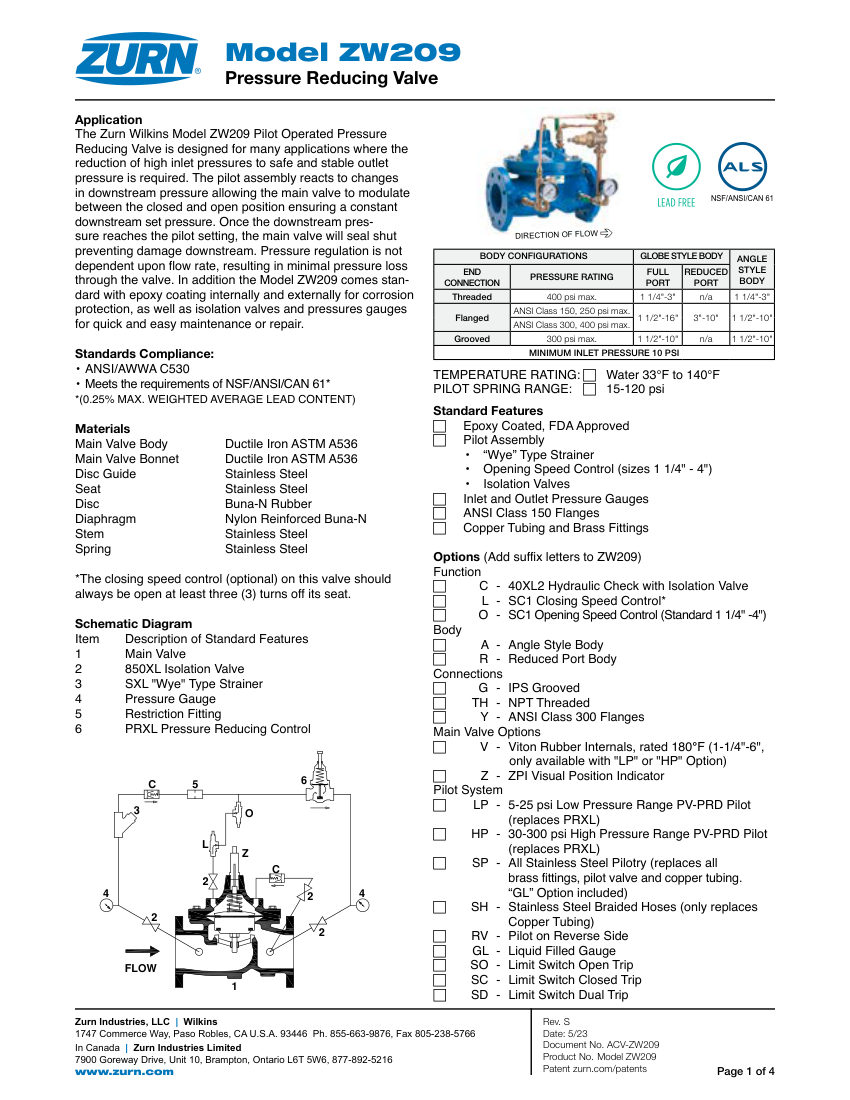

ZurnZW209 — Automatic Control ValveZW209

Name: Zurn ZW209 — Automatic Control Valve
Brand: Zurn
SKU: ZW209

Zurn Pilot Operated Pressure Reducing Valve (Pressure Reducing Valve). Model ZW209. Pilot spring range: 15-120 psi

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	ZW209
Description	Zurn Pilot Operated Pressure Reducing Valve (Pressure Reducing Valve). Model ZW209. Pilot spring range: 15-120 psi
Temperature rating	Water 33°F to 140°F
Minimum inlet pressure	10 psi; Includes isolation valves and pressure gauges. material: Ductile Iron ASTM A536 body, Stainless Steel disc guide/seat/stem/spring, Buna-N Rubber disc
Connection size	Threaded 1 1/4"-3", Flanged 1 1/2"-16", Grooved 1 1/2"-10"
End connection	Threaded, Flanged, Grooved
Pressure Rating	Threaded 400 psi max, Flanged ANSI Class 150 (250 psi) / Class 300 (400 psi), Grooved 300 psi max
Finish	Epoxy Coated, FDA
