ZurnZW209E

Zurn Pilot Operated Pressure Reducing Valve with Solenoid Shut-off (Pressure Reducing Valve). Model ZW209E. Pilot spring range 15-120 psi; Max operating pressure differential 200 psi; Temperature rating 33°F to 140°F; Includes SXL Wye Type Strainer and 2-Way Accelerator Pilot. material: Ductile Iron ASTM A536 body, Stainless Steel disc guide/seat/stem, Buna-N disc

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZW209E.pdfData sheet

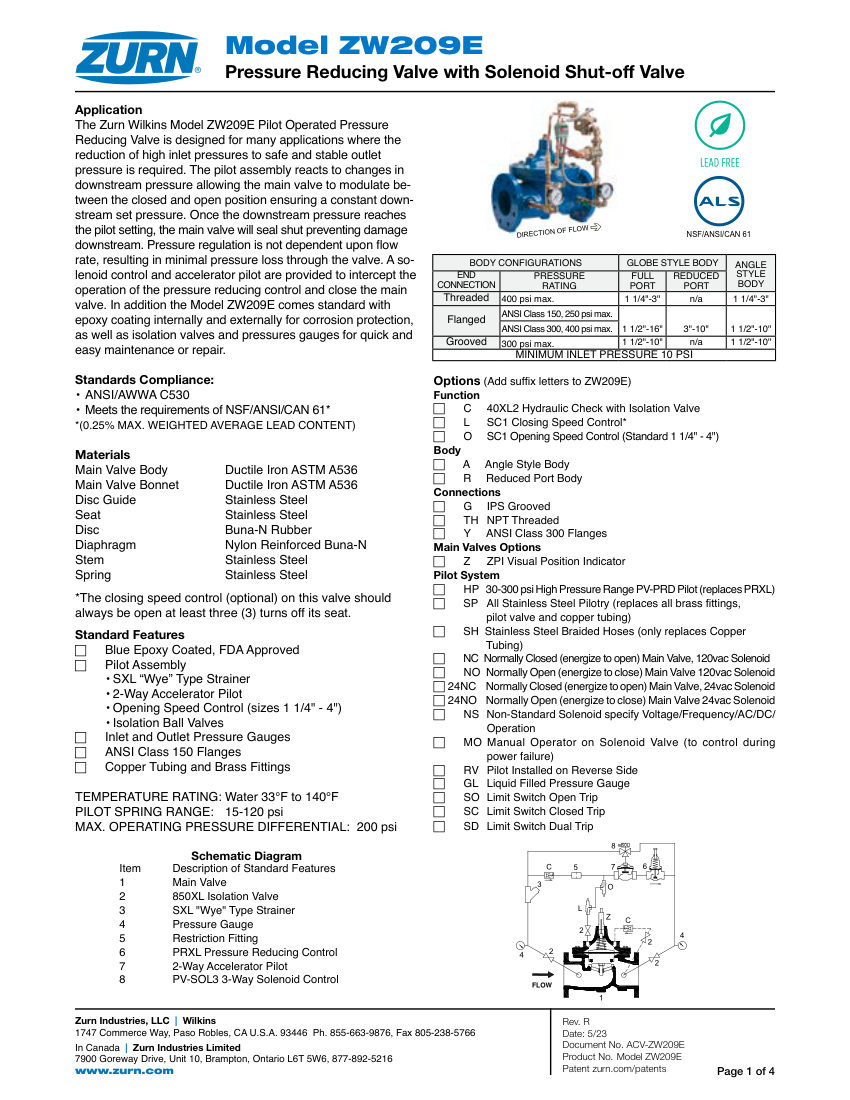

Zurn ZW209E cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZW209E
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZW209E
DescriptionZurn Pilot Operated Pressure Reducing Valve with Solenoid Shut-off (Pressure Reducing Valve). Model ZW209E. Pilot spring range 15-120 psi; Max operating pressure differential 200 psi; Temperature rating 33°F to 140°F; Includes SXL Wye Type Strainer and 2-Way Accelerator Pilot. material: Ductile Iron ASTM A536 body, Stainless Steel disc guide/seat/stem, Buna-N disc
Connection sizeThreaded 1 1/4"-3", Flanged 1 1/2"-16", Grooved 1 1/2"-10"
End connectionThreaded, Flanged, Grooved
Pressure RatingThreaded 400 psi max, Flanged ANSI Class 150/300, Grooved 300 psi max
FinishBlue Epoxy Coated,
