ZurnZW209Q

Zurn Pressure Reducing Valve with Downstream Surge Protection (Pressure Reducing Valve). Model ZW209Q. Pilot Spring Range: 15-120 psi (Pressure Reducing), 35-200 psi (Surge Protection)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZW209Q.pdfData sheet

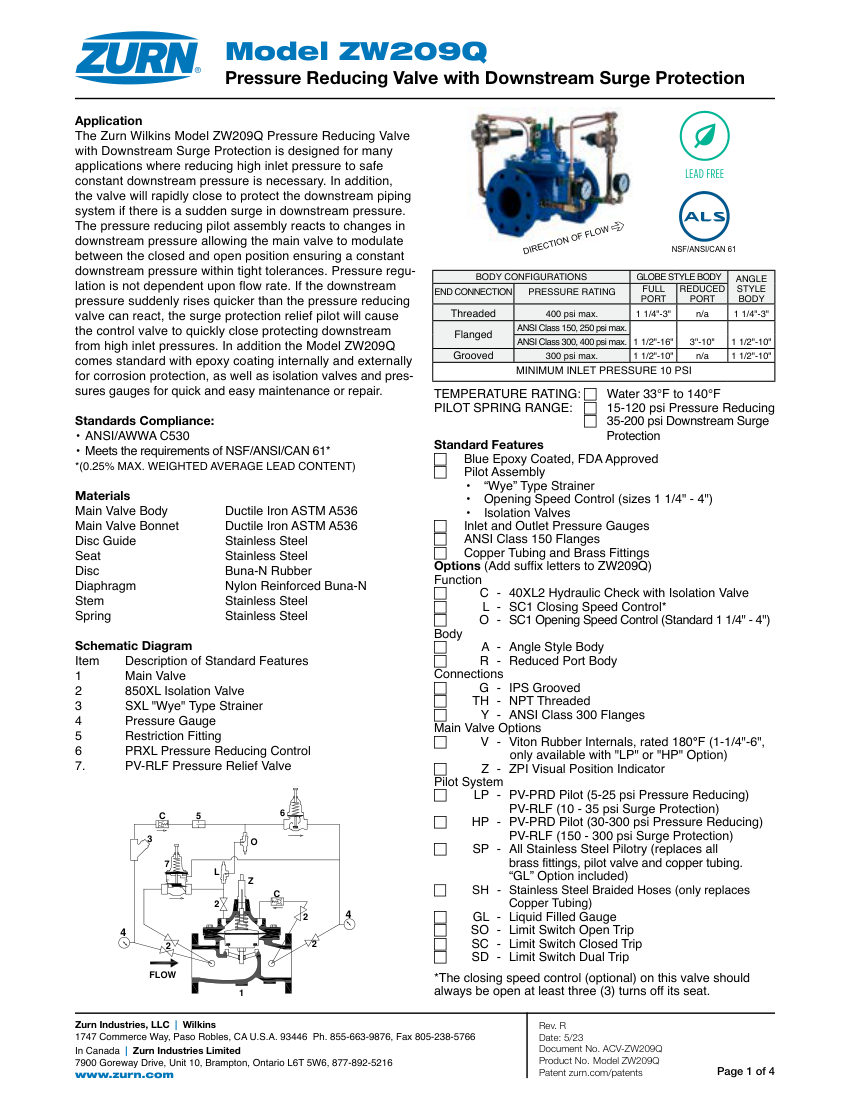

Zurn ZW209Q cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZW209Q
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZW209Q
DescriptionZurn Pressure Reducing Valve with Downstream Surge Protection (Pressure Reducing Valve). Model ZW209Q. Pilot Spring Range: 15-120 psi (Pressure Reducing), 35-200 psi (Surge Protection)
Temperature Rating33°F to 140°F
Minimum Inlet Pressure10 PSI; Includes Isolation Valves and Pressure Gauges. material: Ductile Iron ASTM A536, Stainless Steel, Buna-N Rubber
Connection size1 1/4"-16"
End connectionThreaded, Flanged, Grooved
Pressure Rating400 psi max (Threaded), ANSI Class 150/300 (Flanged), 300 psi max (Grooved)
FinishBlue Epoxy Coated, FDA Approved
ComplianceANSI/AWWA C530, N
