ZurnZW4004

Zurn Pressure Reducing Valve (Fire Control Valve). Model ZW4004. Listed as floor control, indicating, check, and standpipe valve; Regulates pressure under flow and no-flow conditions; Factory set with tapped and plugged inlet/outlet for pressure gauge; Weight approx 20 lbs (9 kg) for standard model. material: Cast bronze ASTM B 584, Buna Nitrile/EPDM elastomers

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZW4004.pdfData sheet

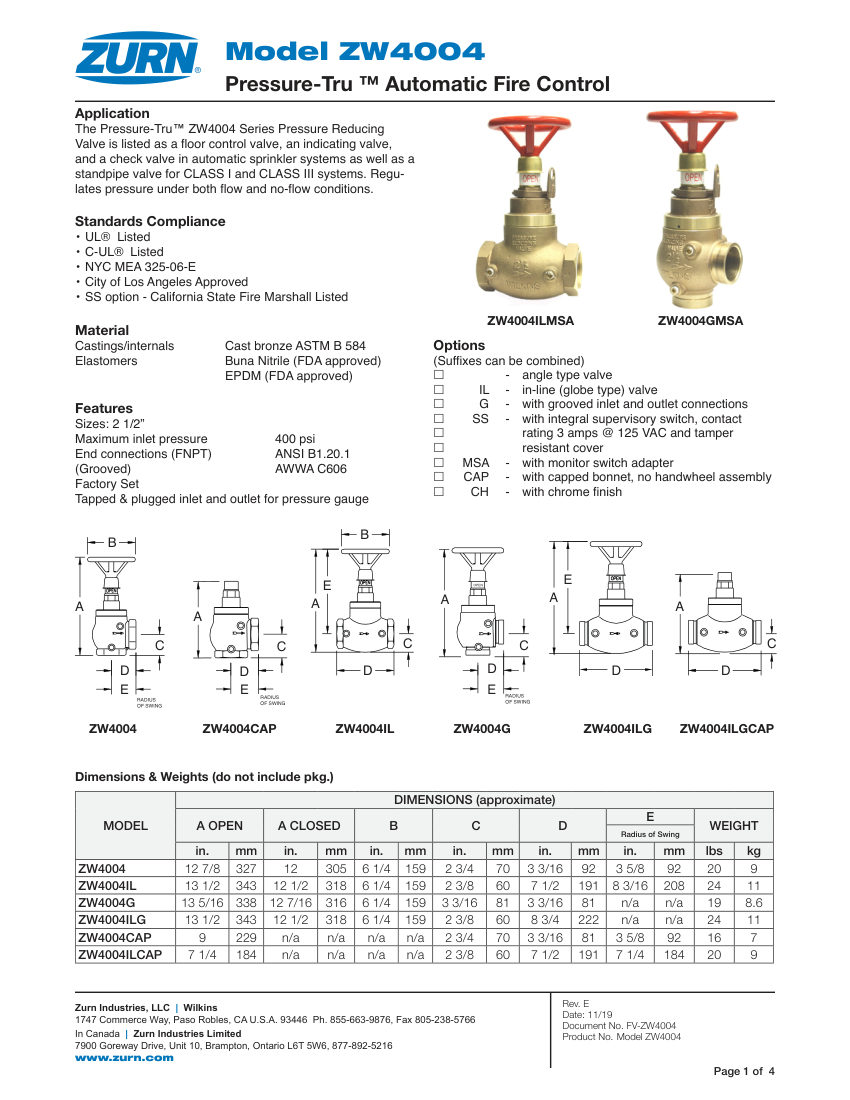

Zurn ZW4004 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZW4004
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZW4004
DescriptionZurn Pressure Reducing Valve (Fire Control Valve). Model ZW4004. Listed as floor control, indicating, check, and standpipe valve; Regulates pressure under flow and no-flow conditions; Factory set with tapped and plugged inlet/outlet for pressure gauge; Weight approx 20 lbs (9 kg) for standard model. material: Cast bronze ASTM B 584, Buna Nitrile/EPDM elastomers
Connection size2 1/2"
End connectionFNPT ANSI B1.20.1, Grooved AWWA C606
Pressure Rating400 psi
DimensionsA: 12 7/8 in (Open), B: 6 1/4 in, C: 2 3/4 in, D: 3 3/16 in, E: 3 5/8 in
ComplianceUL Listed, C-UL Listed, NYC MEA 325

Also cataloged as: ZW4004G
