ZurnZW4100

Zurn Pressure Reducing Valve (Pressure-Tru Fire Hose Valve). Model ZW4100. Listed as a standpipe valve for individual hose stations in CLASS II systems; Regulates pressure under both flow and no-flow conditions; Maximum inlet pressure is 400 psi; Factory set pressure reducing valve. material: Cast bronze ASTM B 584, Buna Nitrile, EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZW4100.pdfData sheet

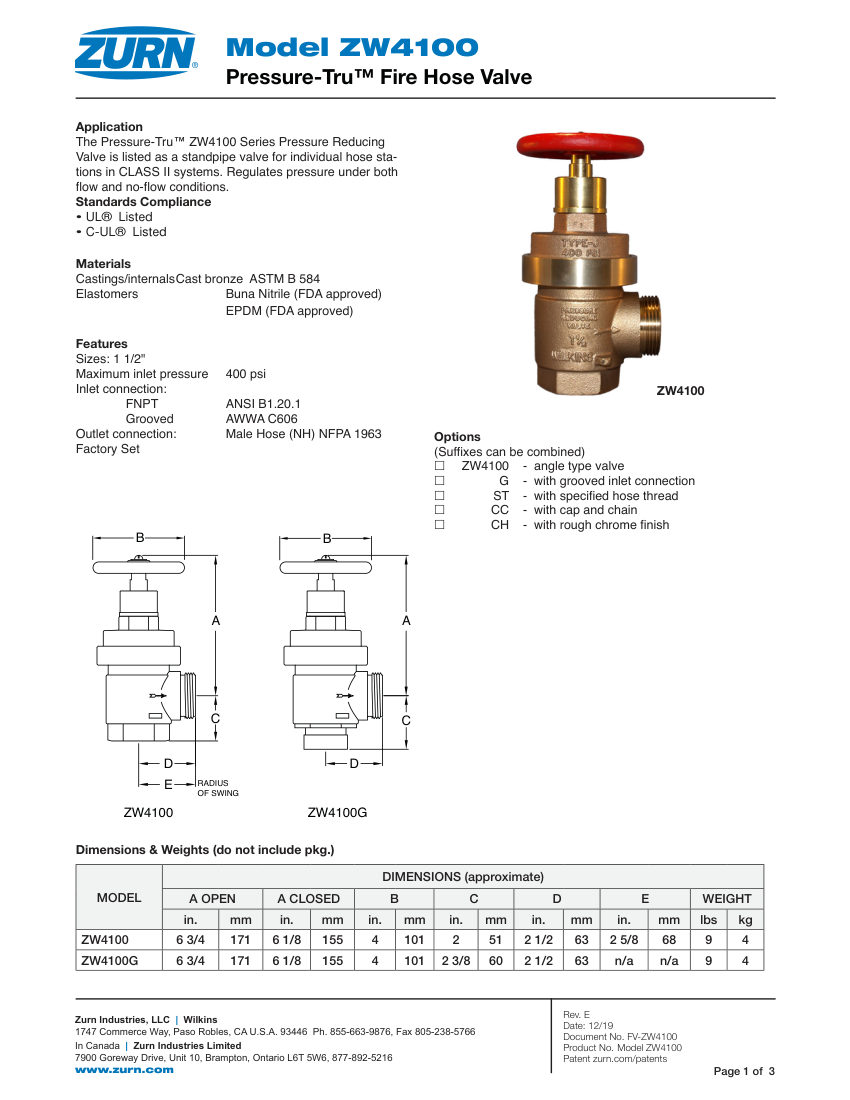

Zurn ZW4100 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
ZW4100
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZW4100
DescriptionZurn Pressure Reducing Valve (Pressure-Tru Fire Hose Valve). Model ZW4100. Listed as a standpipe valve for individual hose stations in CLASS II systems; Regulates pressure under both flow and no-flow conditions; Maximum inlet pressure is 400 psi; Factory set pressure reducing valve. material: Cast bronze ASTM B 584, Buna Nitrile, EPDM
Connection size1 1/2"
End connectionInlet: FNPT ANSI B1.20.1 or Grooved AWWA C606
OutletMale Hose (NH) NFPA 1963
Pressure Rating400 psi
Flow Rate25-125 GPM
DimensionsA: 6 3/4 in (Open), B: 4 in, C: 2 in, D: 2 1/2 in, E: 2 5/8 in.
