DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED
CertainTeedsolstice shingle 70W70WOPENDOWNLOADCOPY
CertainTeed Solar Shingle. Model 70W. Maximum Power (Pmax): 70 W
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- CertainTeed
- Catalog no.
- 70WOPENDOWNLOADCOPY
- Product type
- Roofing
- MasterFormat
- 07 50 00
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 70WOPENDOWNLOADCOPY |
|---|---|
| Description | CertainTeed Solar Shingle. Model 70W. Maximum Power (Pmax): 70 W |
| Voltage at Maximum Power | 7.8 V |
| Current at Maximum Power | 9.0 A |
| Weight | 12.7 lb. material: Monocrystalline PERC |
| Connection size | 12 AWG PV wire |
| End connection | Renhe RHC2 |
| Mounting | Directly on roof sheathing using standard deck screws |
| Dimensions | 46" x 13-5/8" |
| Compliance | UL 61730-1,2; CSA C22.2#61730-1,2; BIPV UL 7103; UL 790 Class A & C; ASTM D3161 Class F 110 mph; FM4473 Class 3; NEC 690.12; UL 3741; California CEC Listed; FBC HVHZ Approved. |

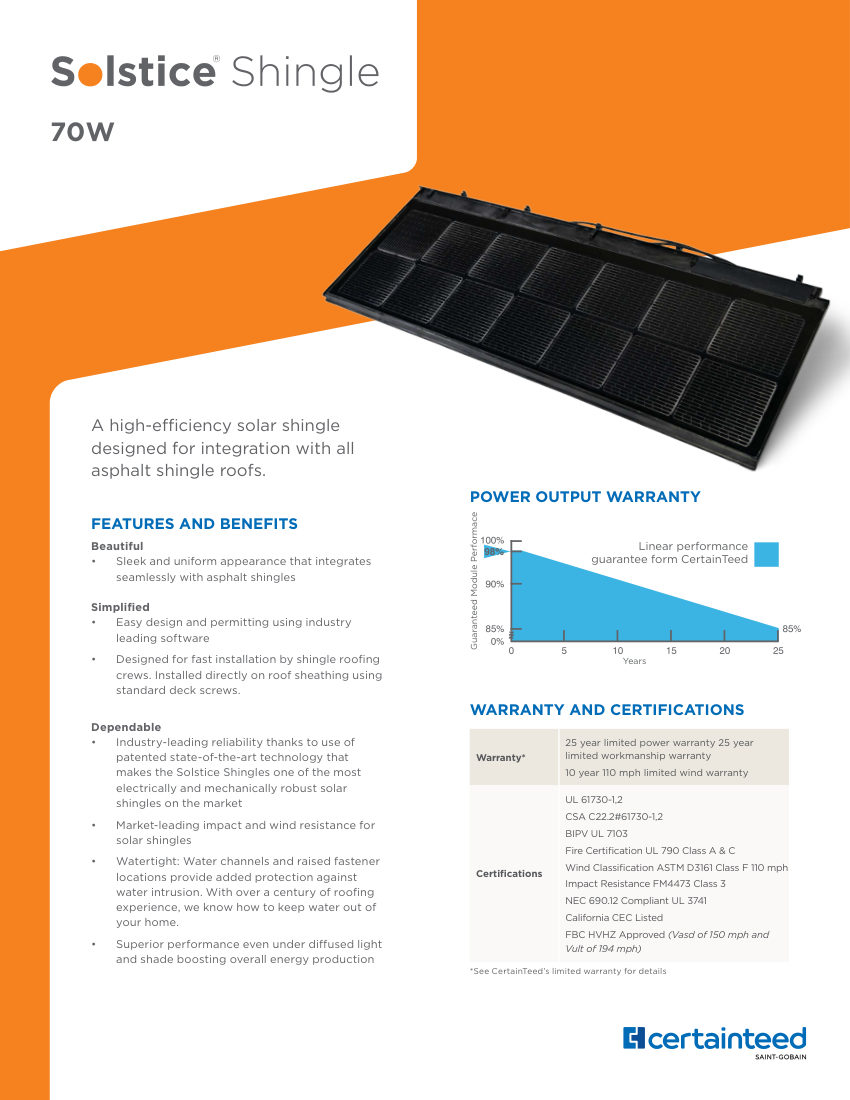

- Official cut sheet, indexed
- Auto-matched to your schedule
- Cover + TOC, one click
