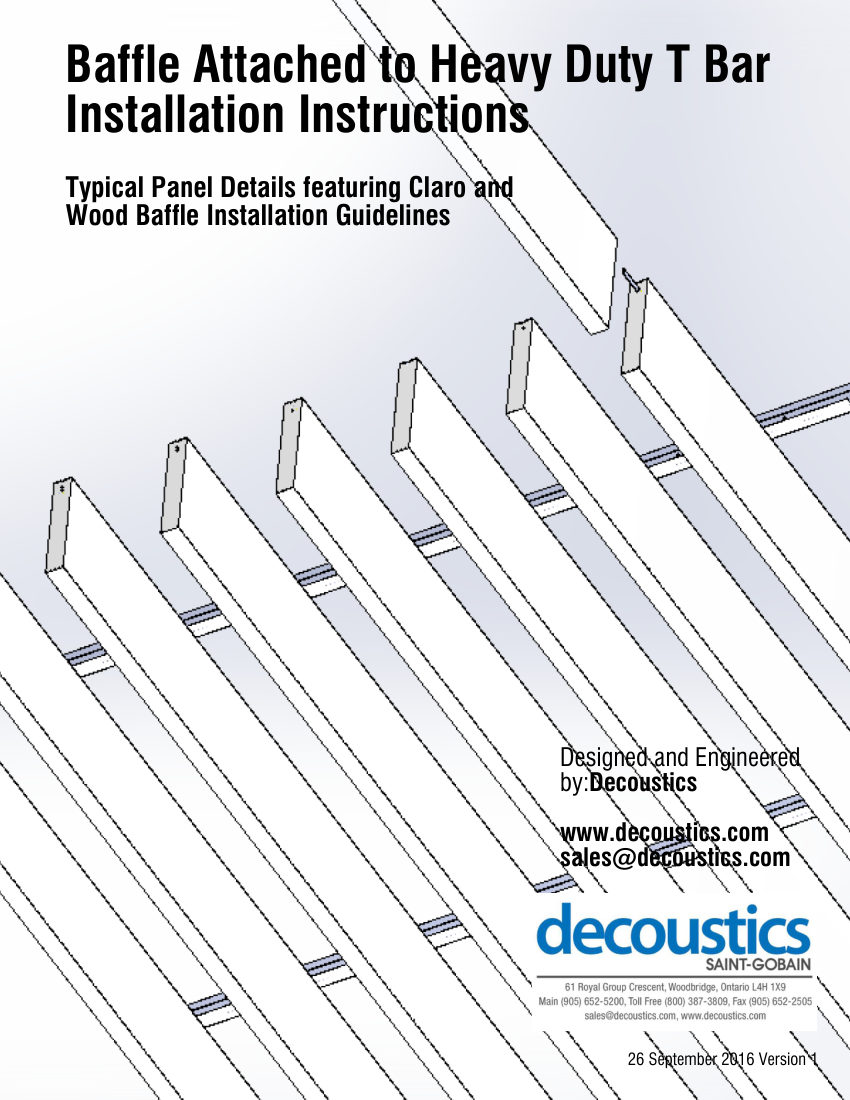

CertainTeedclaro and wood baffle installation to t bar instruction cadd
CertainTeed Ceiling Baffle (Acoustic Baffle). Model Claro and Wood Baffle. Designed and engineered by Decoustics; Requires 24" x 24" Heavy Duty T-bar grid; Main T's on 2'-0" centers; Hanger wires at no more than 4'-0" spacing. material: Claro, Wood
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- CertainTeed
- Catalog no.
- claro and wood baffle installation to t bar instruction cadd
- Product type
- General Product
- MasterFormat
- 09
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | claro and wood baffle installation to t bar instruction cadd |
|---|---|
| Description | CertainTeed Ceiling Baffle (Acoustic Baffle). Model Claro and Wood Baffle. Designed and engineered by Decoustics; Requires 24" x 24" Heavy Duty T-bar grid; Main T's on 2'-0" centers; Hanger wires at no more than 4'-0" spacing. material: Claro, Wood |
| Connection size | 24" x 24" T-bar grid |
| End connection | Swivel type Attachment Clip, Splice Plate Attachment Clip |
| Mounting | Heavy Duty T Bar |
| Dimensions | 2' x 2' grid spacing. |
