DIV 07 · THERMAL & MOISTUREGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedCTL-SC-01

CertainTeed Edge Flashing Restoration Detail (Commercial Roofing). Model CTL-SC-01. Applicable to preexisting edge flashing with firm adhesion; Requires 3-course mastic application; Reinforcement with SMARTFAB 500 required for weak adhesion points; Edge metal must be cleaned of rust and primed if necessary. material: SMARTCOAT 300 Series Mastic, SMARTCOAT 350/365 Silicone Mastic, SMARTFAB 500 Polyester Reinforcement, SMARTCOAT 210 Universal Primer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCTL-SC-01.pdfData sheet

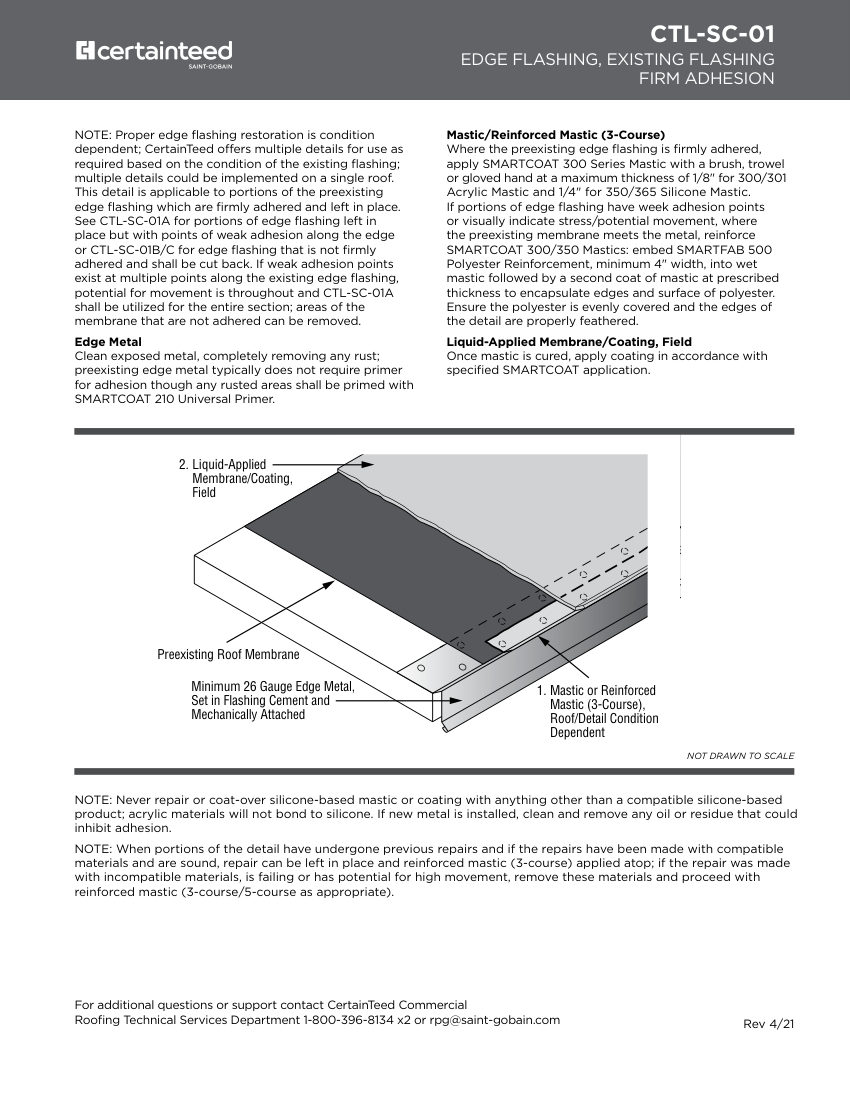

CertainTeed CTL-SC-01 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
CTL-SC-01
Product type
General Product
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCTL-SC-01
DescriptionCertainTeed Edge Flashing Restoration Detail (Commercial Roofing). Model CTL-SC-01. Applicable to preexisting edge flashing with firm adhesion; Requires 3-course mastic application; Reinforcement with SMARTFAB 500 required for weak adhesion points; Edge metal must be cleaned of rust and primed if necessary. material: SMARTCOAT 300 Series Mastic, SMARTCOAT 350/365 Silicone Mastic, SMARTFAB 500 Polyester Reinforcement, SMARTCOAT 210 Universal Primer
MountingFirm Adhesion
DimensionsMastic max thickness 1/8" (Acrylic) or 1/4" (Silicone); Reinforcement min 4" width.
