DIV 07 · THERMAL & MOISTUREGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedCTL-SC-03

CertainTeed Curb Equipment Flashing Detail (Roofing). Model CTL-SC-03. Assumes preexisting roof membrane is left in place; Reinforced mastic (3-course) required at curb corners and metal joints; SMARTFAB 500 polyester reinforcement minimum 4" width embedded in wet mastic; Do not apply more than 1 gallon per 100 sq. ft. in a single coat to avoid sagging. material: SMARTCOAT 300 Series Mastic, SMARTFAB 500 Polyester Reinforcement, Liquid-Applied Membrane/Coating

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCTL-SC-03.pdfData sheet

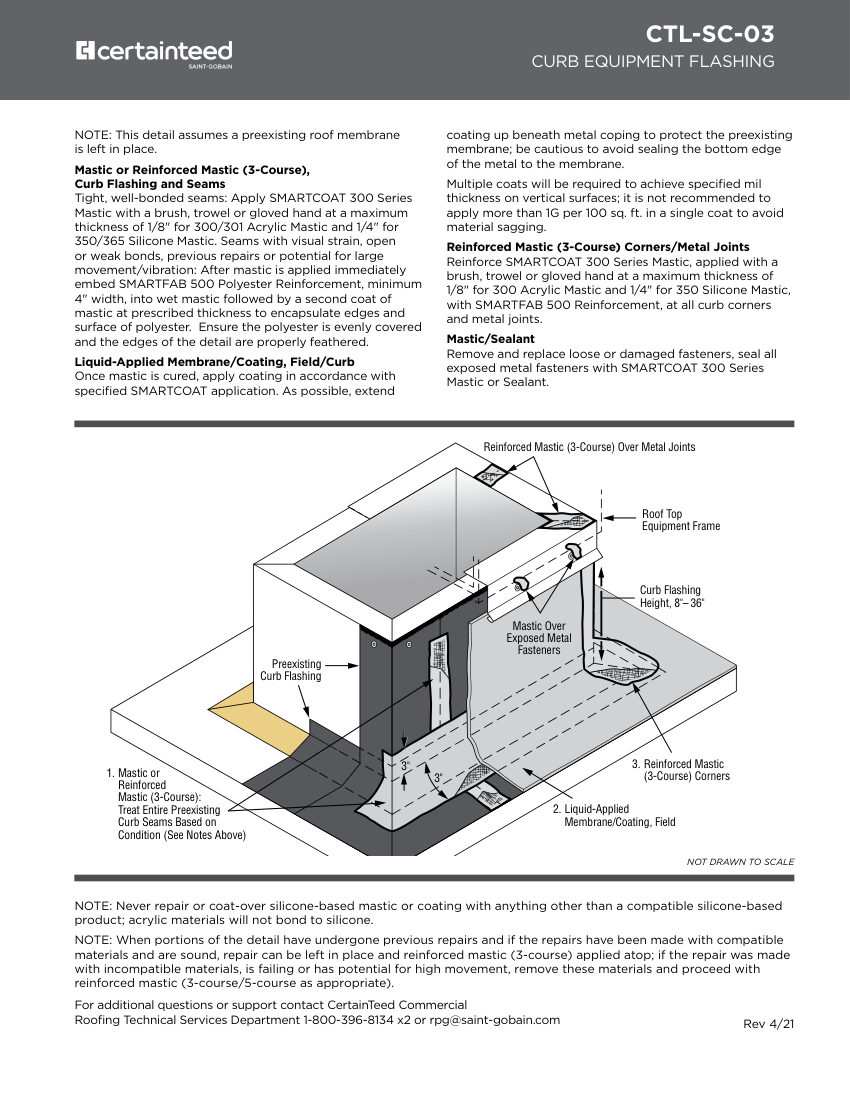

CertainTeed CTL-SC-03 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
CTL-SC-03
Product type
General Product
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCTL-SC-03
DescriptionCertainTeed Curb Equipment Flashing Detail (Roofing). Model CTL-SC-03. Assumes preexisting roof membrane is left in place; Reinforced mastic (3-course) required at curb corners and metal joints; SMARTFAB 500 polyester reinforcement minimum 4" width embedded in wet mastic; Do not apply more than 1 gallon per 100 sq. ft. in a single coat to avoid sagging. material: SMARTCOAT 300 Series Mastic, SMARTFAB 500 Polyester Reinforcement, Liquid-Applied Membrane/Coating
MountingCurb Flashing Height 8"–36"
DimensionsReinforcement min 4" width; Mastic max 1/8" (Acrylic) or 1/4" (Silicone).
