DIV 07 · THERMAL & MOISTUREGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedCTL-SC-08B

CertainTeed Pipe Flashing Detail (Commercial Roofing). Model CTL-SC-08B. Detail for new pipe installation or complete removal of existing flashing; Requires 3-course reinforced mastic for pipe-to-field transition; Requires 5-course reinforced mastic for pipe flashing to field; Polyester reinforcement must be minimum 6 inches wide. material: SMARTCOAT 300 Series Mastic, SMARTFAB 500 Polyester Reinforcement

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCTL-SC-08B.pdfData sheet

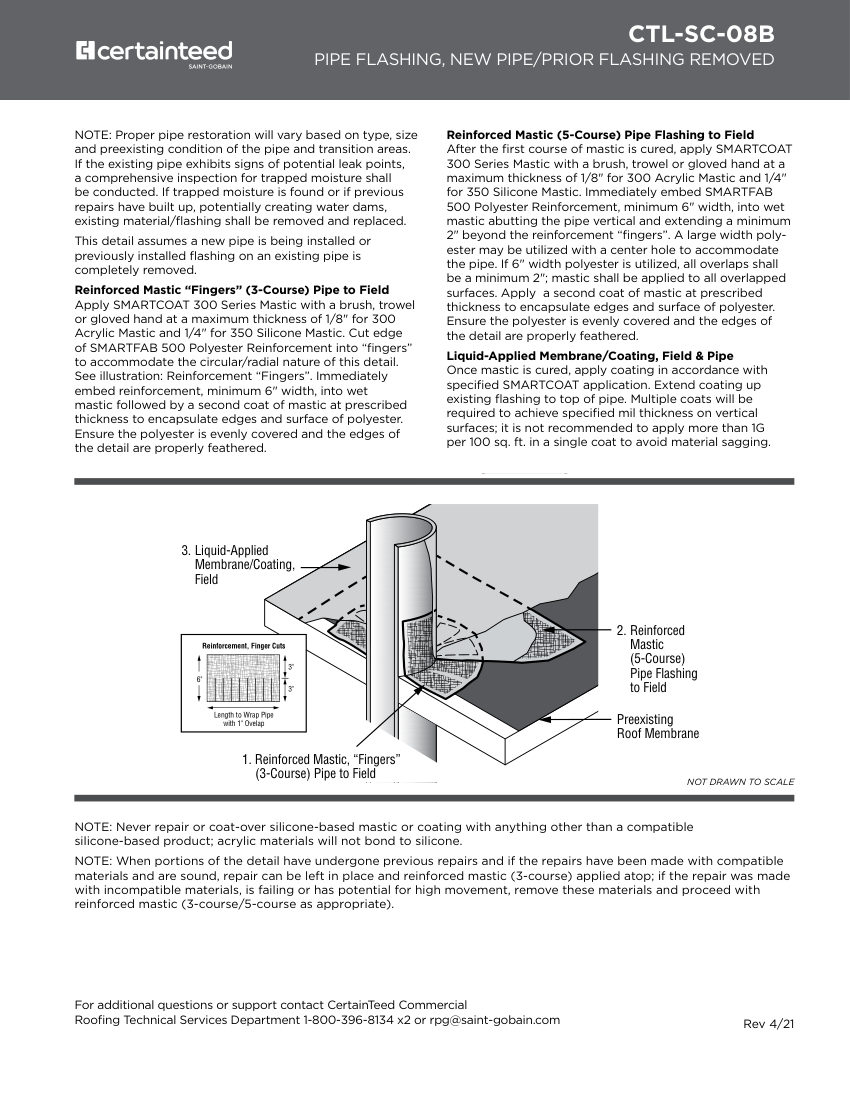

CertainTeed CTL-SC-08B cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
CTL-SC-08B
Product type
General Product
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCTL-SC-08B
DescriptionCertainTeed Pipe Flashing Detail (Commercial Roofing). Model CTL-SC-08B. Detail for new pipe installation or complete removal of existing flashing; Requires 3-course reinforced mastic for pipe-to-field transition; Requires 5-course reinforced mastic for pipe flashing to field; Polyester reinforcement must be minimum 6 inches wide. material: SMARTCOAT 300 Series Mastic, SMARTFAB 500 Polyester Reinforcement
DimensionsMin 6" width reinforcement, 2" extension beyond fingers, 1/8" max mastic thickness (Acrylic), 1/4" max mastic thickness (Silicone).
