DIV 07 · THERMAL & MOISTUREGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedCTL-SC-12A

CertainTeed Stack Vent Flashing Restoration (Roofing Detail). Model CTL-SC-12A. Applies to preexisting roof membranes with stack vent curbs; Uses 3-course mastic application with polyester reinforcement for seams; Maximum mastic thickness is 1/8" for acrylic and 1/4" for silicone; Requires SMARTCOAT 370 UltraSeal for liquid-applied membrane field/curb. material: SMARTCOAT 300 Series Mastic, SMARTFAB 500 Polyester Reinforcement, SMARTCOAT 370 UltraSeal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCTL-SC-12A.pdfData sheet

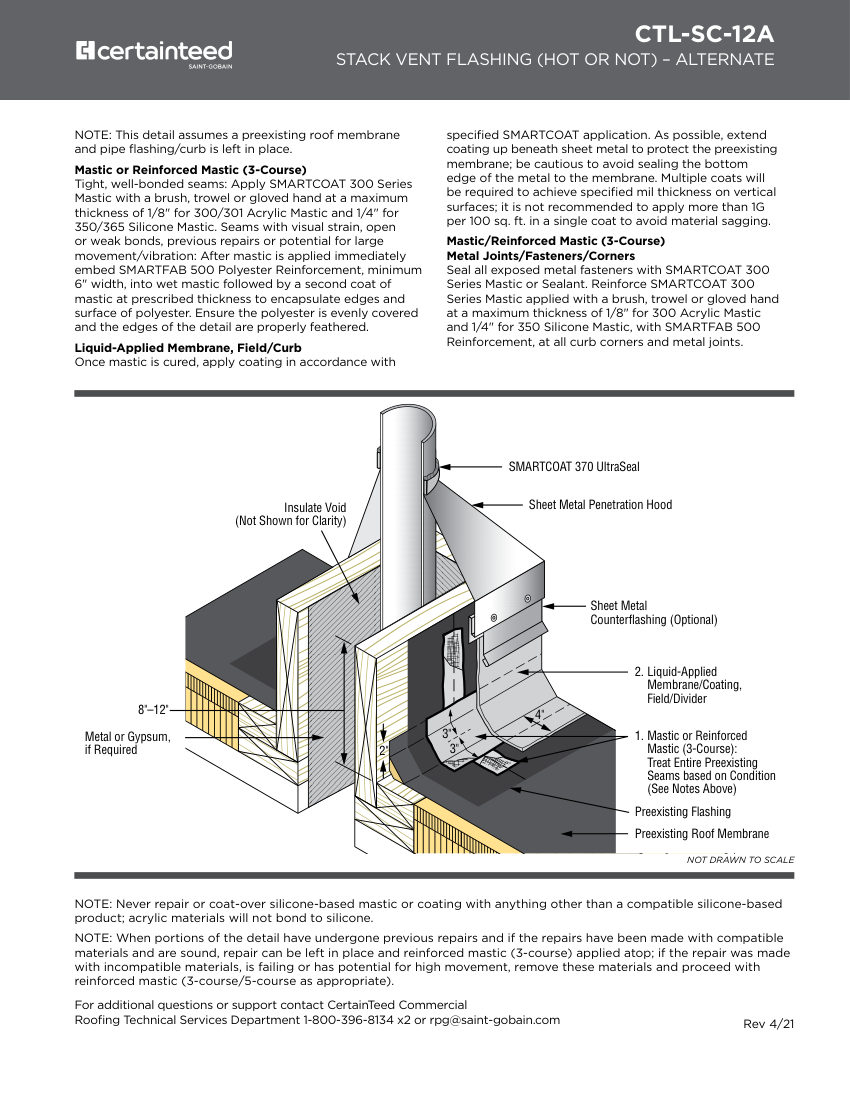

CertainTeed CTL-SC-12A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
CTL-SC-12A
Product type
General Product
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCTL-SC-12A
DescriptionCertainTeed Stack Vent Flashing Restoration (Roofing Detail). Model CTL-SC-12A. Applies to preexisting roof membranes with stack vent curbs; Uses 3-course mastic application with polyester reinforcement for seams; Maximum mastic thickness is 1/8" for acrylic and 1/4" for silicone; Requires SMARTCOAT 370 UltraSeal for liquid-applied membrane field/curb. material: SMARTCOAT 300 Series Mastic, SMARTFAB 500 Polyester Reinforcement, SMARTCOAT 370 UltraSeal
MountingPreexisting roof membrane and pipe flashing/curb
Dimensions8"–12" curb height, 4" penetration hood, 3" counterflashing.
