DIV 09 · FINISHESACOUSTICAL CEILINGSCUT SHEET INDEXED

CertainTeedvault ceilingCurved Vault Ceiling-1-1/16

CertainTeed Curved Vault Ceiling Panel (Ceiling). Model Decoustics Curved Vault. NRC 0.80 for fabric finish; Weight 0.90 psf (4.40 kg/m2) for fabric finish; Thickness 1-1/16" (27mm) for fabric finish; Minimum radius 24" (610mm). material: 6-7 pcf core with 16-20 pcf high density integral facer, fabric or Claro finish

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCurved-Vault-Ceiling-1-1-16.pdfData sheet

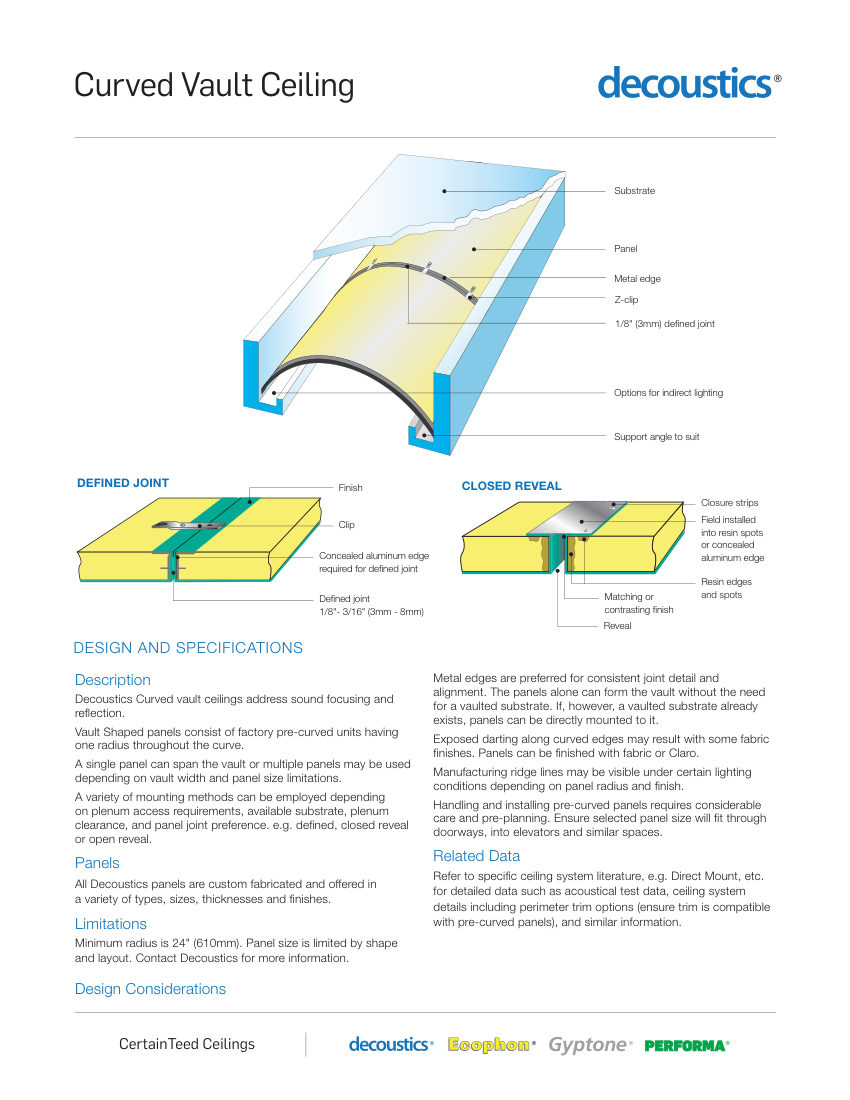

CertainTeed Curved Vault Ceiling-1-1/16 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
Curved Vault Ceiling-1-1/16
Product type
Acoustical Ceilings
MasterFormat
09 51 13
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCurved Vault Ceiling-1-1/16
DescriptionCertainTeed Curved Vault Ceiling Panel (Ceiling). Model Decoustics Curved Vault. NRC 0.80 for fabric finish; Weight 0.90 psf (4.40 kg/m2) for fabric finish; Thickness 1-1/16" (27mm) for fabric finish; Minimum radius 24" (610mm). material: 6-7 pcf core with 16-20 pcf high density integral facer, fabric or Claro finish
End connectionResin square edge, Aluminum square edge, or Z-clip
FinishFabric or Claro
MountingDirect mount, Z-clip, or support angle
DimensionsUp to 48" x 120" (1220mm x 3050mm); Min radius 24" (610mm).

Also cataloged as: Curved Vault Ceiling-1-9/16, Curved Vault Ceiling-2-1/16, Curved Vault Ceiling-QPP-19, Curved Vault Ceiling-QPP-25, Curved Vault Ceiling-QPP-50
