DIV 09 · FINISHESGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedESR 4180

CertainTeed Suspended Ceiling Assembly (Ceiling Suspension System). Model ESR-4180. Grid members are aluminum extruded Type F and Type G (Alloy 6063-T6); Butterfly plates are 0.081-inch (2.1 mm) thick aluminum (Alloy 3003-H14); Torsion springs are galvanized hard drawn wire (ASTM A764), min 0.090-inch (2.3 mm) diameter for straight config; Retainer clips are spring steel (AISI 1055), min 0.031-inch (0.79 mm) thick. material: Aluminum 6063-T6 (Grid), Aluminum 3003-H14 (Butterfly Plates), Galvanized Spring Wire (Torsion Springs), Spring Steel AISI 1055 (Retainer Clips)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFESR-4180.pdfData sheet

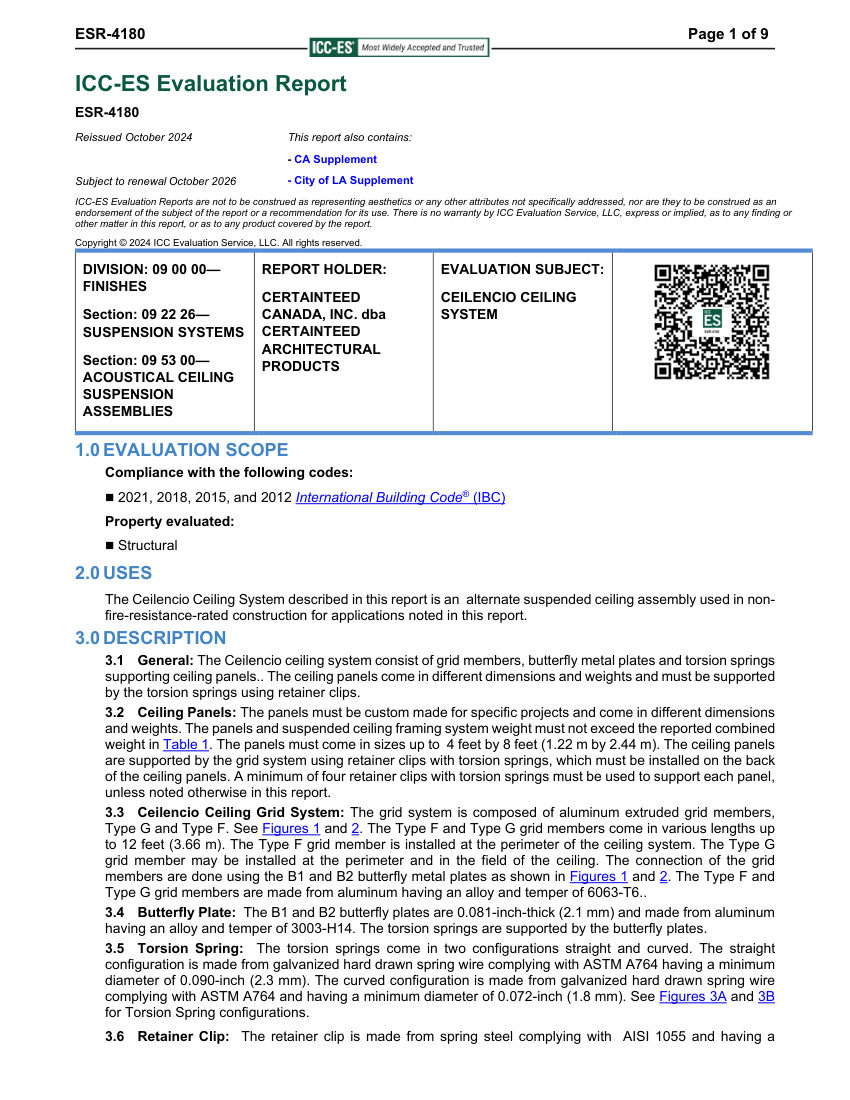

CertainTeed ESR 4180 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
ESR 4180
Product type
General Product
MasterFormat
09
Cut sheet
PDF · manufacturer current

Product details

Catalog numberESR 4180
DescriptionCertainTeed Suspended Ceiling Assembly (Ceiling Suspension System). Model ESR-4180. Grid members are aluminum extruded Type F and Type G (Alloy 6063-T6); Butterfly plates are 0.081-inch (2.1 mm) thick aluminum (Alloy 3003-H14); Torsion springs are galvanized hard drawn wire (ASTM A764), min 0.090-inch (2.3 mm) diameter for straight config; Retainer clips are spring steel (AISI 1055), min 0.031-inch (0.79 mm) thick. material: Aluminum 6063-T6 (Grid), Aluminum 3003-H14 (Butterfly Plates), Galvanized Spring Wire (Torsion Springs), Spring Steel AISI 1055 (Retainer Clips)
End connectionButterfly
