DIV 09 · FINISHESTILECUT SHEET INDEXED
CertainTeedglasroc tile backerglasroc tile backer
CertainTeed Tile Backer Panel (Drywall Products & Systems). Model GlasRoc Tile Backer. Thickness options: 1/2" (12.7 mm) and 5/8" (15.9 mm) Type X
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- CertainTeed
- Catalog no.
- glasroc tile backer
- Product type
- Tile
- MasterFormat
- 09 30 13
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | glasroc tile backer |
|---|---|
| Description | CertainTeed Tile Backer Panel (Drywall Products & Systems). Model GlasRoc Tile Backer. Thickness options: 1/2" (12.7 mm) and 5/8" (15.9 mm) Type X |
| Weight | 1.9 lb/ft² (9.28 kg/m²) for 1/2" and 2.5 lb/ft² (12.21 kg/m²) for 5/8"; Mold resistance score of 10/10 per ASTM D3273; GREENGUARD Gold Certified. material: Moisture-resistant gypsum core with engineered fiber glass facers |
| Finish | Glass Mat |
| Dimensions | 1/2" (12.7 mm) or 5/8" (15.9 mm) thick, 4' (1220 mm) wide, 8' (2440 mm) long |
| Compliance | ASTM C1178, ASTM C840, GA-216, TCNA, IBC, IRC, NBCC, UL/ULC. |

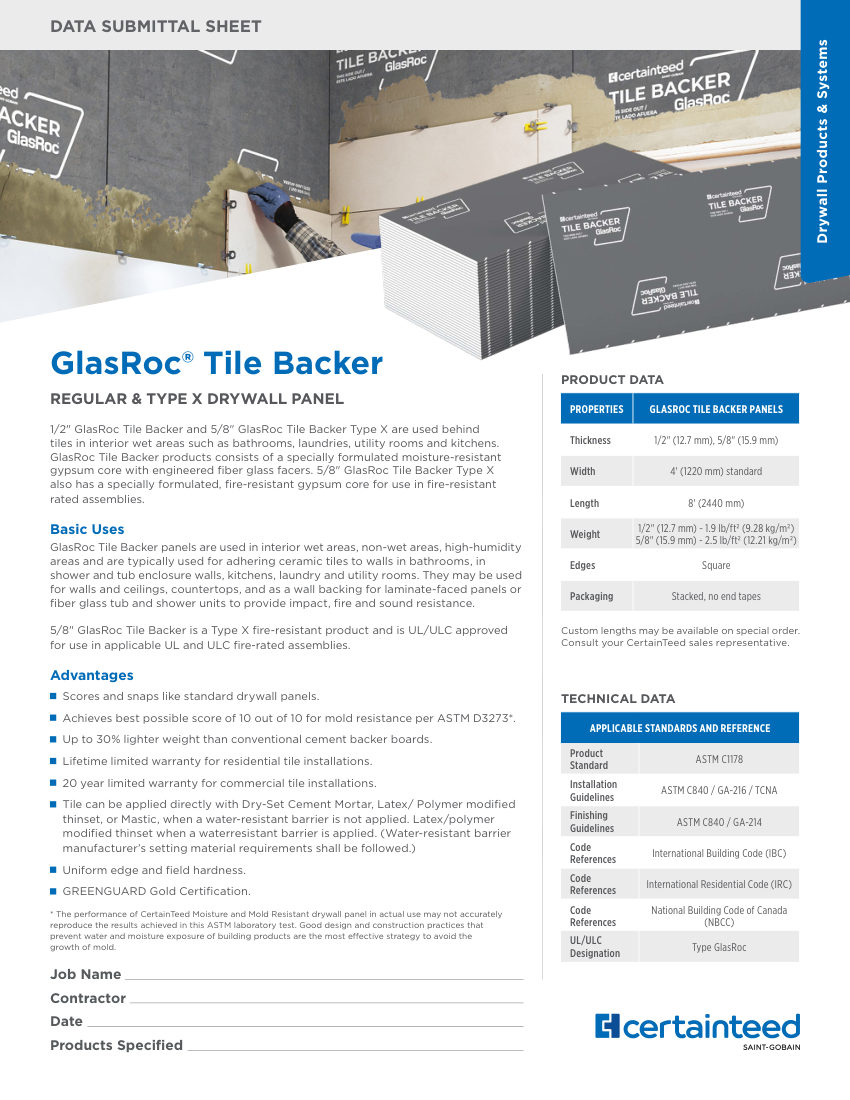

- Official cut sheet, indexed
