DIV 09 · FINISHESGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedhigh profile series vertically curvedhigh profile series vertically curved

CertainTeed Vertically Curved Baffle Ceiling System (Metal Ceilings & Walls). Model High Profile Series Vertically Curved. Standard profile: 1-1/2" x 6-3/8" beam

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhigh-profile-series-vertically-curved.pdfData sheet

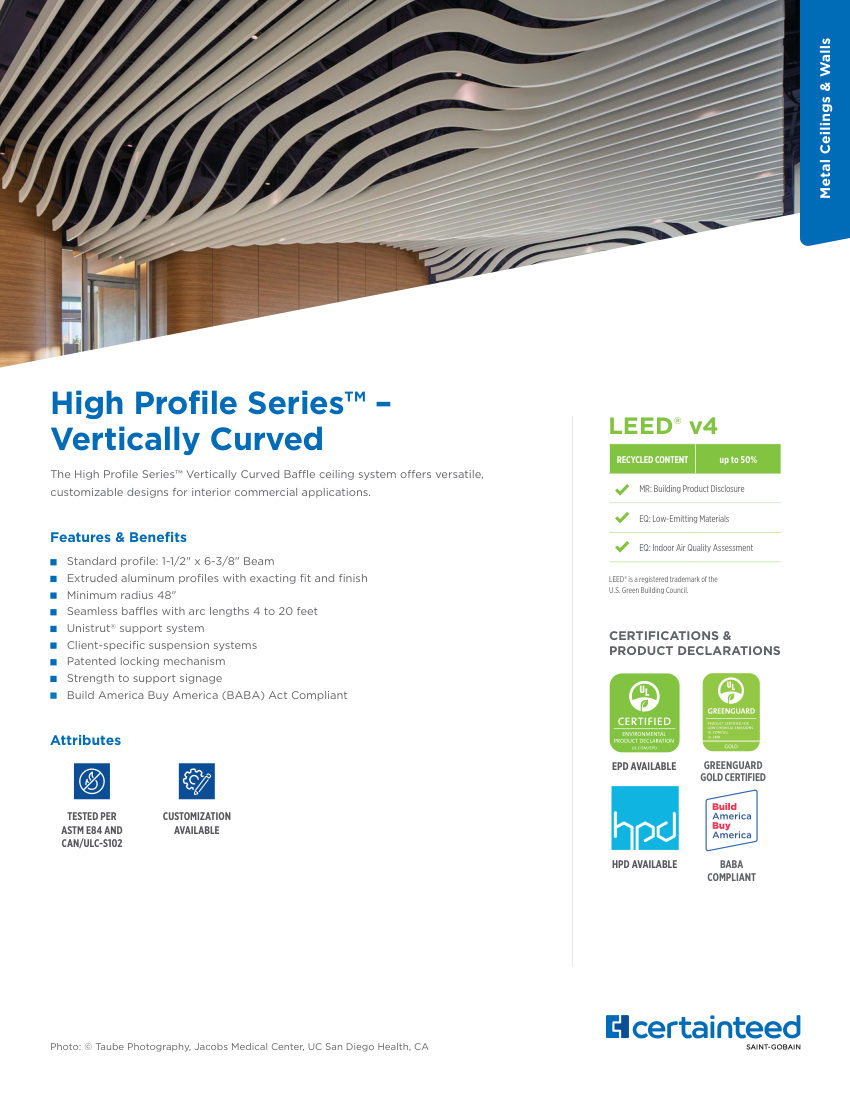

CertainTeed high profile series vertically curved cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
high profile series vertically curved
Product type
General Product
MasterFormat
09
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhigh profile series vertically curved
DescriptionCertainTeed Vertically Curved Baffle Ceiling System (Metal Ceilings & Walls). Model High Profile Series Vertically Curved. Standard profile: 1-1/2" x 6-3/8" beam
Minimum radius48 inches; Seamless baffles with arc lengths 4 to 20 feet; Patented locking mechanism. material: Extruded aluminum
Connection size1-1/2" x 6-3/8" Beam
End connectionUnistrut support system
FinishPowder-coat paint
MountingHanger bracket, 12 ga steel primary channel
DimensionsMin radius 48", Baffle length 4' to 20'.
