DIV 09 · FINISHESGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedhigh impact resistant tackableHIR1

CertainTeed High Impact Resistant Fabric Wall Panel (Acoustic Wall Panels). Model H.I.R.1. Flame Spread 25 / Smoke Development 450 (Class A); Recycled content up to 57%; Core density 6-7 pcf with 1/8" high-density face; Weight varies from 1.2 to 1.75 lbs./sq.ft.. material: Fiberglass core with high-density veil and fabric finish

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFHIR1.pdfData sheet

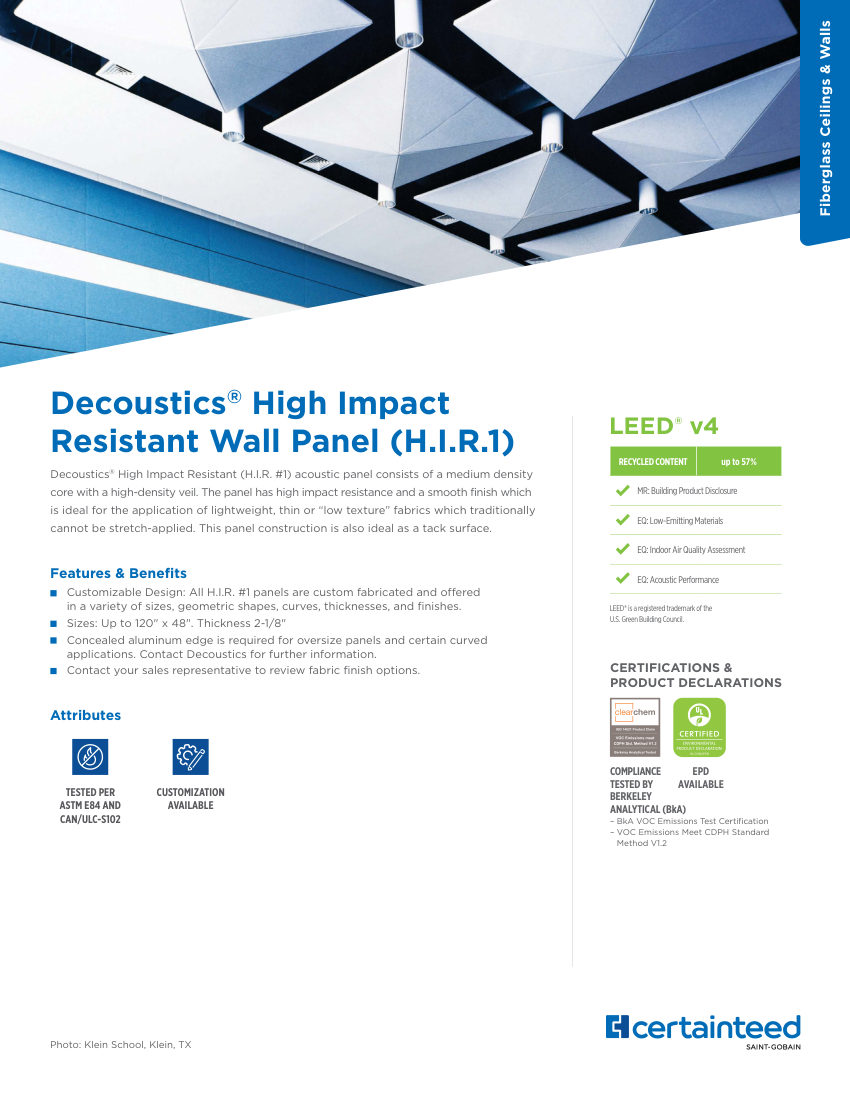

CertainTeed HIR1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
HIR1
Product type
General Product
MasterFormat
09
Cut sheet
PDF · manufacturer current

Product details

Catalog numberHIR1
DescriptionCertainTeed High Impact Resistant Fabric Wall Panel (Acoustic Wall Panels). Model H.I.R.1. Flame Spread 25 / Smoke Development 450 (Class A); Recycled content up to 57%; Core density 6-7 pcf with 1/8" high-density face; Weight varies from 1.2 to 1.75 lbs./sq.ft.. material: Fiberglass core with high-density veil and fabric finish
FinishFabric (various options), Smooth
MountingMechanical fastening, adhesive, or hook and loop fasteners
DimensionsUp to 120" x 48" (3050mm x 1220mm), Thickness 2-1/8"
ComplianceASTM E84, CAN/ULC-S102, Class A (Flame Spread 25 / Smoke Dev. 450).
