CertainTeedMonogramXLMonogram XL-Double 4" Clapboard

CertainTeed Vinyl Siding. Model Monogram XL. Available in Double 4" Clapboard and Double 5" Dutchlap profiles; 17 colors available with PermaColor technology; RigidForm 210 technology with .092" double-thick nail hem; STUDfinder system with graphics for stud alignment. material: PVC resin

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFMonogram-XL-Double-4-Clapboard.pdfData sheet

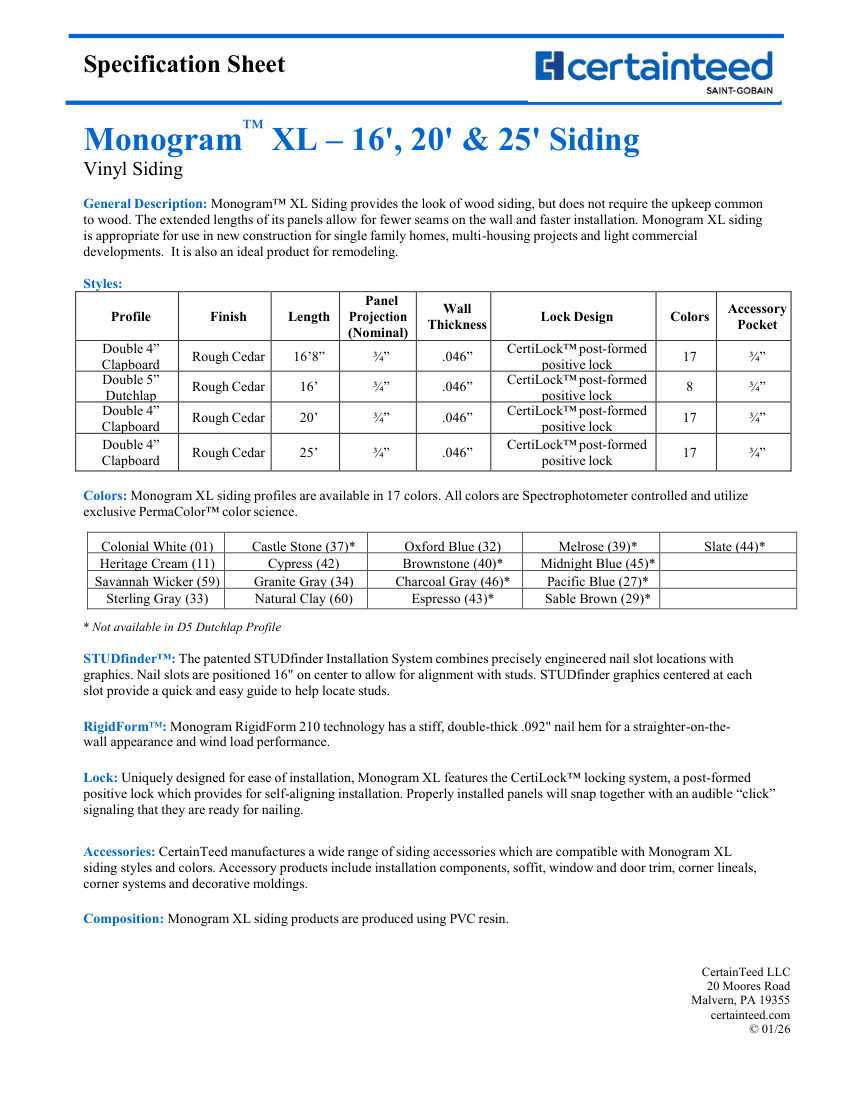

CertainTeed Monogram XL-Double 4" Clapboard cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
Monogram XL-Double 4" Clapboard
Product type
General Product
MasterFormat
09
Cut sheet
PDF · manufacturer current

Product details

Catalog numberMonogram XL-Double 4" Clapboard
DescriptionCertainTeed Vinyl Siding. Model Monogram XL. Available in Double 4" Clapboard and Double 5" Dutchlap profiles; 17 colors available with PermaColor technology; RigidForm 210 technology with .092" double-thick nail hem; STUDfinder system with graphics for stud alignment. material: PVC resin
End connectionCertiLock post-formed positive lock
FinishRough Cedar
MountingNail slots 16" on center
Dimensions16'8", 16', 20', 25' lengths; 3/4" projection; .046" wall thickness
ComplianceASTM D3679, ASTM E84 Class A, NFPA 268, IBC/IRC 2015-2024.

Also cataloged as: Monogram XL-Double 5" Dutchlap, Monogram XL-16'8", Monogram XL-16', Monogram XL-20', Monogram XL-25', Monogram XL-01, Monogram XL-11, Monogram XL-59, Monogram XL-33, Monogram XL-37, Monogram XL-42
