DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

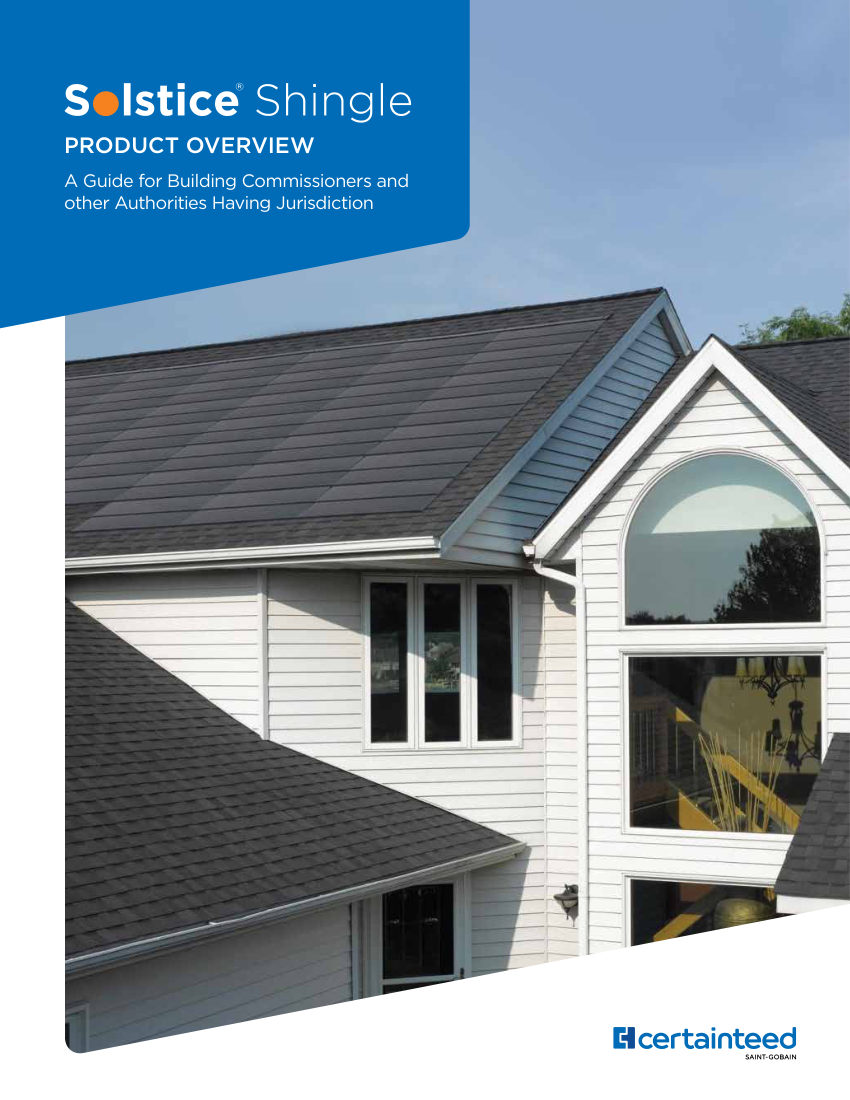

CertainTeedSolstice Shingle AHJ Guide

Name: CertainTeed Solstice Shingle AHJ Guide
Brand: CertainTeed
SKU: Solstice Shingle AHJ Guide

CertainTeed Photovoltaic Shingle (Building Integrated Photovoltaics (BIPV)). Model Solstice Shingle. Generates 70 Watts per shingle

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	Solstice Shingle AHJ Guide
Description	CertainTeed Photovoltaic Shingle (Building Integrated Photovoltaics (BIPV)). Model Solstice Shingle. Generates 70 Watts per shingle
Requires roof slope of 2	12 or greater
Minimum roof deck	15/32" veneer plywood or 7/16" non-veneer sheathing; HVHZ roof deck requirement: 19/32" CD exposure 1 plywood. material: Glass top, resin frame, photovoltaic cells
Mounting	5 screws per shingle, 3 stainless-steel wind clips
Dimensions	2.3 lbs/sq ft
Compliance	Class C fire resistant (with GRACE ICE AND WATER SHIELD HT), ASTM D1970.
