DIV 07 · THERMAL & MOISTUREGENERAL PRODUCTCUT SHEET INDEXED

CertainTeedtech data Flintlastic SA PlyBase 01 11 4292 NA EN 2407

CertainTeed Self-adhered SBS-modified bitumen base or interply (Roofing). Model Flintlastic SA PlyBase. Tensile Strength: 65/40 lbs./in. (MD/XD)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFtech-data-Flintlastic-SA-PlyBase-01-11-4292-NA-EN-2407.pdfData sheet

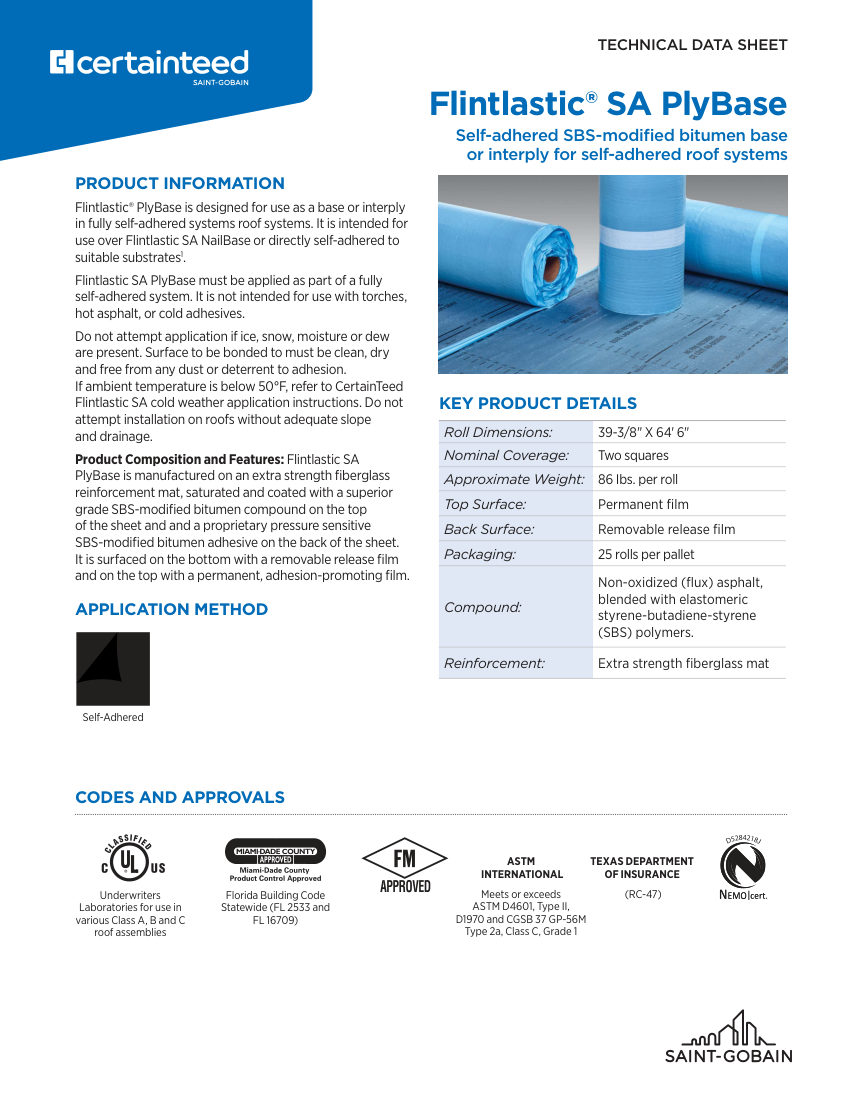

CertainTeed tech data Flintlastic SA PlyBase 01 11 4292 NA EN 2407 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
CertainTeed
Catalog no.
tech data Flintlastic SA PlyBase 01 11 4292 NA EN 2407
Product type
General Product
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numbertech data Flintlastic SA PlyBase 01 11 4292 NA EN 2407
DescriptionCertainTeed Self-adhered SBS-modified bitumen base or interply (Roofing). Model Flintlastic SA PlyBase. Tensile Strength: 65/40 lbs./in. (MD/XD)
Elongation6.0%/5.0% (MD/XD)
Thickness1.5 mm (59 mils)
Approximate Weight86 lbs. per roll. material: SBS-modified bitumen compound on extra strength fiberglass reinforcement mat
FinishTop: Permanent film
BackRemovable release film
MountingSelf-adhered
Dimensions39-3/8" x 64' 6"
ComplianceASTM D4601 Type II, D1970, CGSB 37 GP-56M Type 2a Class C Grade 1; UL Class A, B, C; Florida Building Code FL 2533, FL 16709.
