Greenheckabd-z1 balancing damperABD-Z1

Greenheck Automatic Balancing Damper (HVAC Dampers). Model ABD-Z1. Maintains constant airflow volume in HVAC applications; Includes shut off damper with electric actuator and plenum box; Operating temperature range: 25°F to 150°F (-4°C to 65°C); ABD frame and blades made of reinforced UL 94 thermoplastic resins. material: Galvanized steel, Reinforced UL 94 thermoplastic resins

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFABD-Z1.pdfData sheet

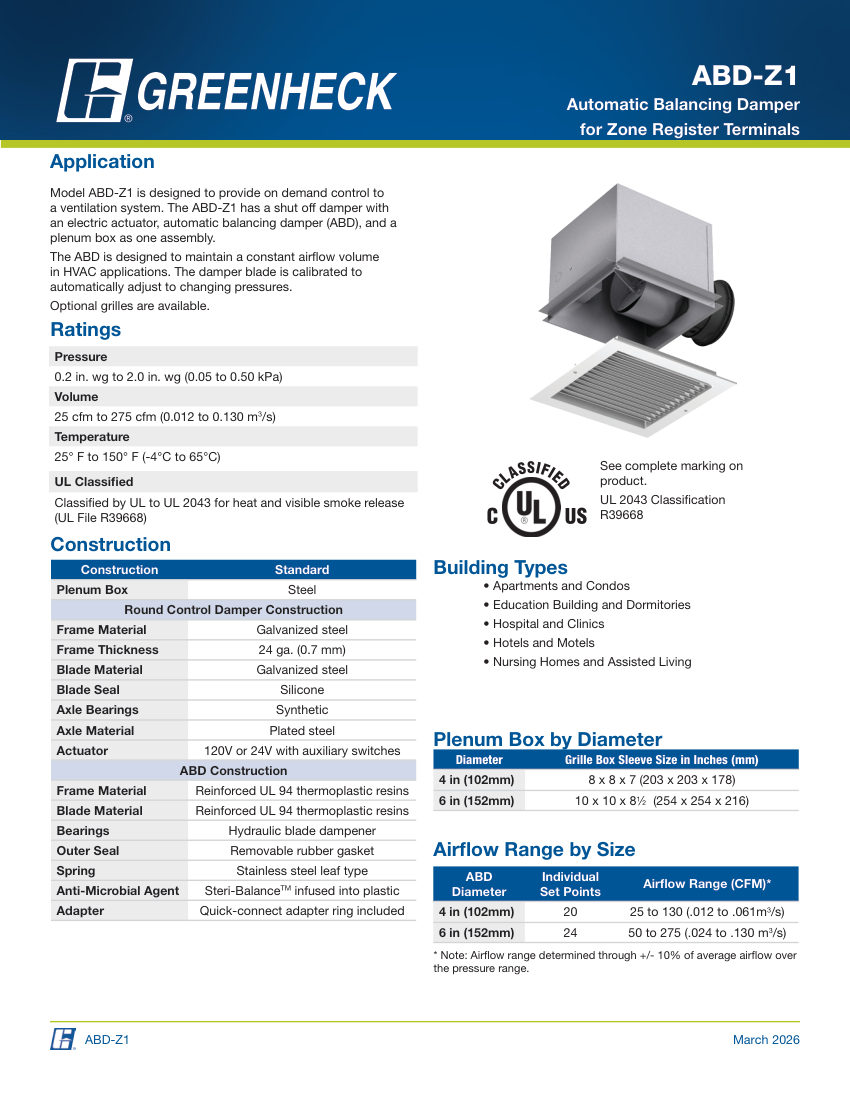

Greenheck ABD-Z1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ABD-Z1
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberABD-Z1
DescriptionGreenheck Automatic Balancing Damper (HVAC Dampers). Model ABD-Z1. Maintains constant airflow volume in HVAC applications; Includes shut off damper with electric actuator and plenum box; Operating temperature range: 25°F to 150°F (-4°C to 65°C); ABD frame and blades made of reinforced UL 94 thermoplastic resins. material: Galvanized steel, Reinforced UL 94 thermoplastic resins
Connection size4 in (102mm), 6 in (152mm)
End connectionQuick-connect adapter ring
Pressure Rating0.2 in. wg to 2.0 in. wg (0.05 to 0.50 kPa)
Flow Rate25 cfm to 275 cfm (0.012 to 0.130 m3/s)
MountingIntake Mou
