DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckofd-150 out of wall static rated fire damperofd-150

Greenheck Out of Wall Static Rated Fire Damper (Fire Damper). Model OFD-150. Fire rating of 1 1/2 hours; Fusible link rating 165°F (74°C) standard, 212°F (100°C) optional; UL 555 Classification R13317; Suitable for walls/partitions with less than 3-hour fire resistance rating. material: Galvanized steel frame and blades, stainless steel closure spring

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFofd-150.pdfData sheet

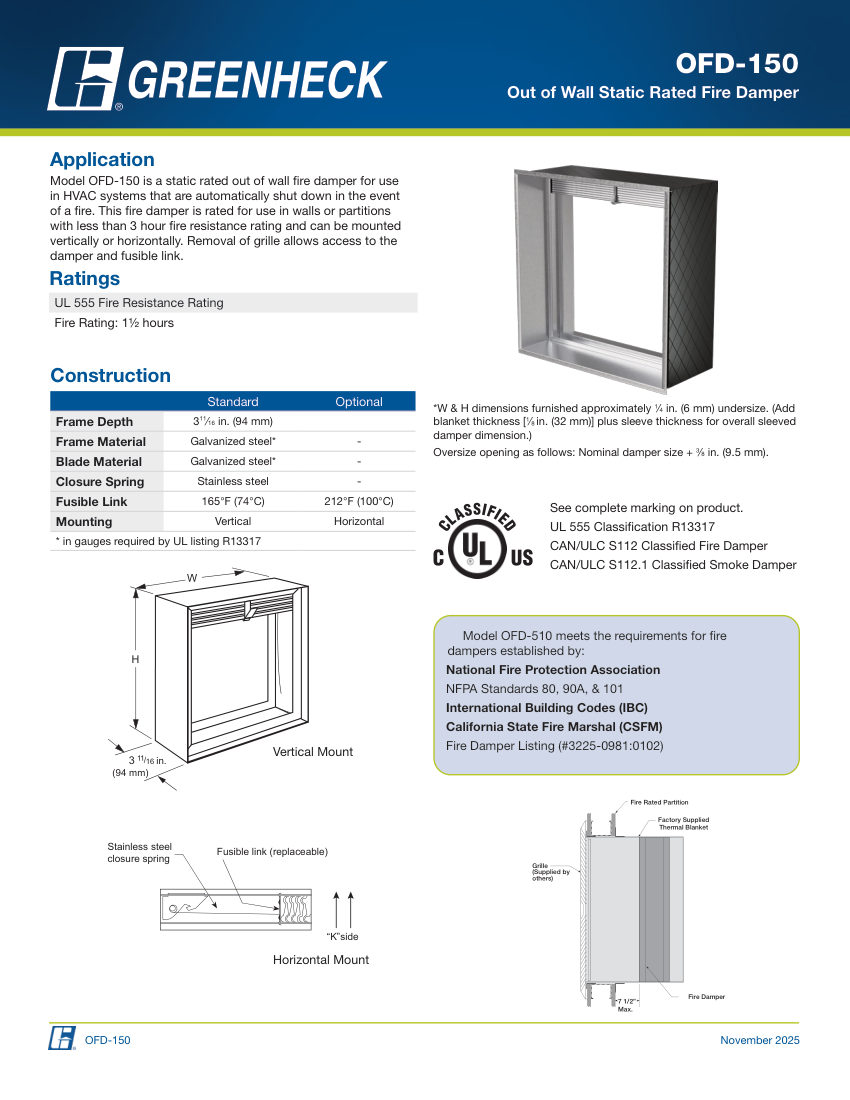

Greenheck ofd-150 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ofd-150
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberofd-150
DescriptionGreenheck Out of Wall Static Rated Fire Damper (Fire Damper). Model OFD-150. Fire rating of 1 1/2 hours; Fusible link rating 165°F (74°C) standard, 212°F (100°C) optional; UL 555 Classification R13317; Suitable for walls/partitions with less than 3-hour fire resistance rating. material: Galvanized steel frame and blades, stainless steel closure spring
Connection size4x4 in. (102x102 mm) to 36x36 in. (914x914 mm) Type A; 4x3 in. (102x76 mm) to 36x31 in. (914x787 mm) Type B2
MountingVertical or Horizontal
DimensionsFrame depth 3 11/16 in. (94 mm)
ComplianceUL 555, CAN/ULC S112, NFPA 8
  • Official cut sheet, indexed
