Panduitplenum base8 lc breakout trunk cable assemblies fbsp232plenum-base8-lc-breakout-trunk-cable-assemblies-fbsp232

Panduit Plenum Base 8 LC Breakout Trunk Cable Assembly (Fiber Optic Cabling). Model FBS P232. Supports speeds of 25/40/50/100/400G and beyond

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFplenum-base8-lc-breakout-trunk-cable-assemblies-fbsp232.pdfData sheet

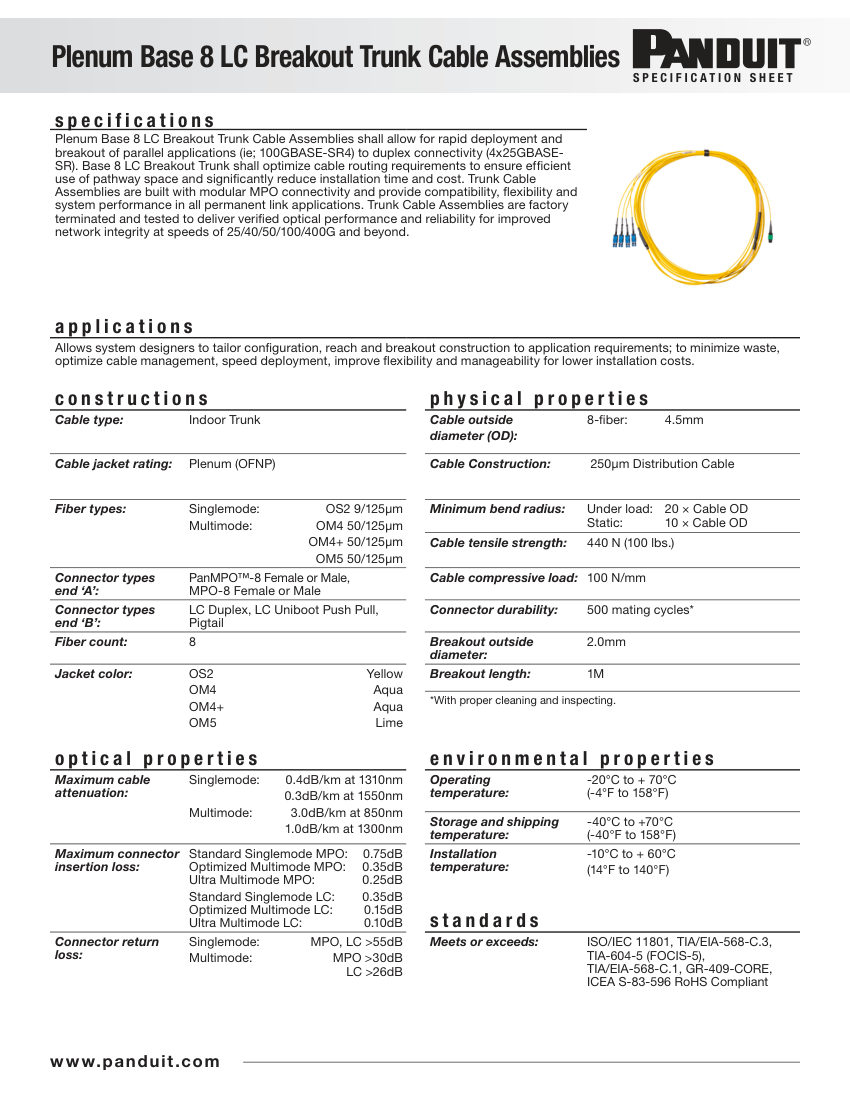

Panduit plenum-base8-lc-breakout-trunk-cable-assemblies-fbsp232 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
plenum-base8-lc-breakout-trunk-cable-assemblies-fbsp232
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberplenum-base8-lc-breakout-trunk-cable-assemblies-fbsp232
DescriptionPanduit Plenum Base 8 LC Breakout Trunk Cable Assembly (Fiber Optic Cabling). Model FBS P232. Supports speeds of 25/40/50/100/400G and beyond
Maximum cable attenuationSM 0.4dB/km @1310nm, MM 3.0dB/km @850nm
Connector insertion lossSM MPO 0.75dB, MM MPO 0.35dB, SM LC 0.35dB, MM LC 0.15dB
Operating temperature-20°C to +70°C. material: OS2 9/125μm, OM4 50/125μm, OM4+ 50/125μm, OM5 50/125μm
Connection size8-fiber
End connectionEnd A: PanMPO-8 Female/Male, MPO-8 Female/Male
End BLC Duplex, LC Uniboot Push Pull, Pigtail
FinishPlenum (OFNP)
DimensionsCable OD: 4.5mm, Breakout OD
