DIV 27 · COMMUNICATIONSNETWORK INFRASTRUCTURECUT SHEET INDEXED

Panduitplenum base8 mpo trunk cable assemblies fbsp228 ww engplenum-base8-mpo-trunk-cable-assemblies-fbsp228-ww-eng

Panduit MPO Trunk Cable Assembly (Fiber Optic Cabling). Model FBS P228. Fiber counts: 8, 16, 24, 48, 72, 96, 144; Supports speeds from 10G to 800G and beyond

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFplenum-base8-mpo-trunk-cable-assemblies-fbsp228-ww-eng.pdfData sheet

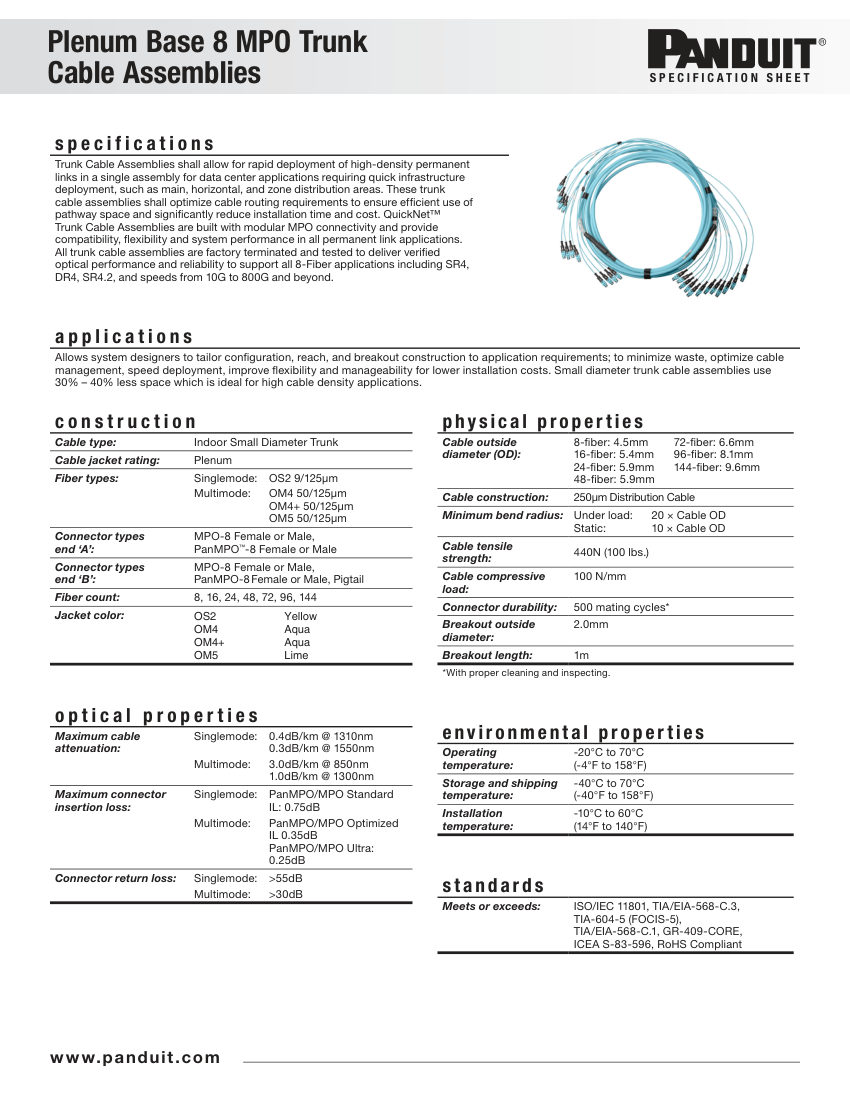

Panduit plenum-base8-mpo-trunk-cable-assemblies-fbsp228-ww-eng cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
plenum-base8-mpo-trunk-cable-assemblies-fbsp228-ww-eng
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberplenum-base8-mpo-trunk-cable-assemblies-fbsp228-ww-eng
DescriptionPanduit MPO Trunk Cable Assembly (Fiber Optic Cabling). Model FBS P228. Fiber counts: 8, 16, 24, 48, 72, 96, 144; Supports speeds from 10G to 800G and beyond
Minimum bend radius20x OD under load, 10x OD static
Cable tensile strength440N (100 lbs.). material: OS2 9/125μm, OM4 50/125μm, OM4+ 50/125μm, OM5 50/125μm
Connection sizeMPO-8
End connectionMPO-8 Female/Male, PanMPO-8 Female/Male
FinishPlenum Jacket
Dimensions8-fiber OD: 4.5mm, 16-fiber OD: 5.4mm, 24-fiber OD: 5.9mm, 48-fiber OD: 5.9mm, 72-fiber OD: 6.6mm, 96-fiber OD: 8.1mm, 144-fiber OD: 9.6mm
ComplianceISO/IEC 11801
