USGDrywall Suspension System Flat CeilingsAC3117

USG Drywall Ceiling Framing System (Ceiling Suspension System). Model AC3117. Installs faster than traditional framing methods; More than 60 UL fire-resistive designs available; Assemblies meet STC and IIC requirements; Wind load tested and approved for exterior applications. material: G90 Galvanized Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAC3117.pdfData sheet

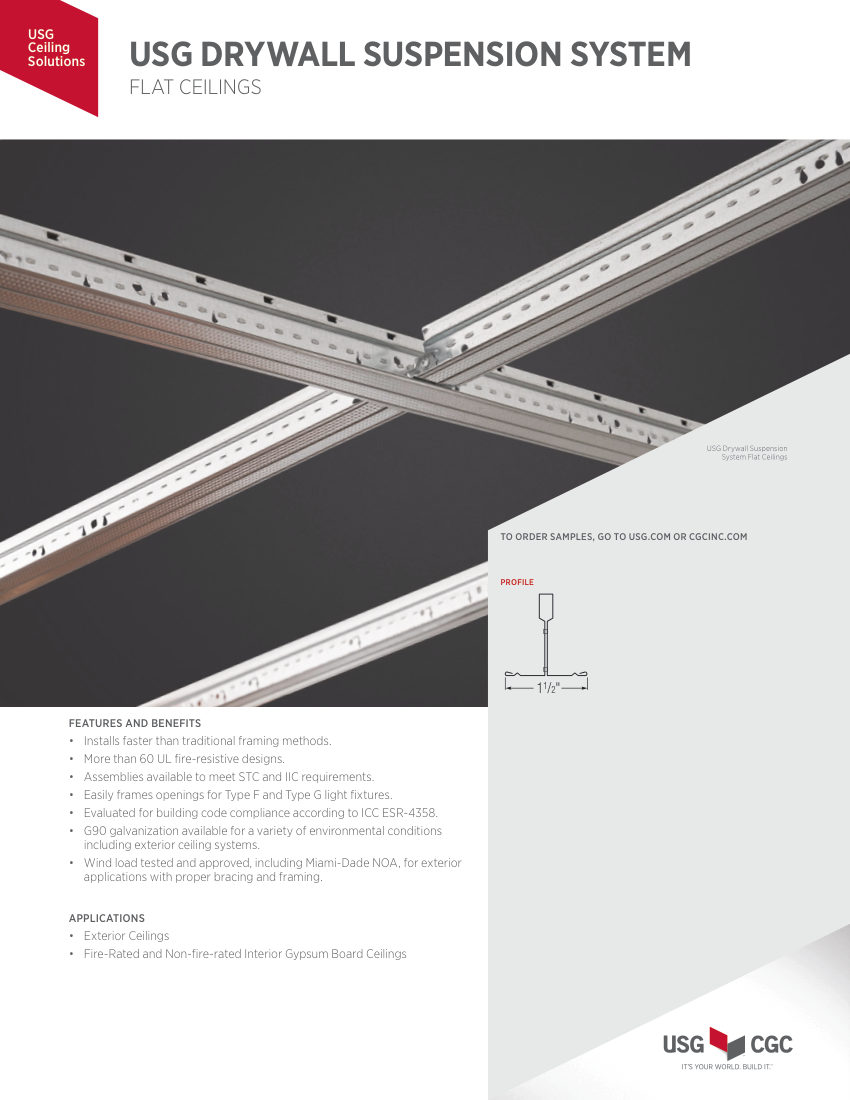

USG AC3117 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
AC3117
Product type
Drywall / Gypsum Panels
MasterFormat
09 21 16
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAC3117
DescriptionUSG Drywall Ceiling Framing System (Ceiling Suspension System). Model AC3117. Installs faster than traditional framing methods; More than 60 UL fire-resistive designs available; Assemblies meet STC and IIC requirements; Wind load tested and approved for exterior applications. material: G90 Galvanized Steel
Connection size1-1/2" nominal
End connectionTee and Cross Tee
FinishG90 Galvanization
MountingHanger Spacing 24"-48"
Dimensions12' Length, 1.617" Height.
