USGDrywall Suspension System - Wall-To-WallAC3230

USG Drywall Suspension System (Ceiling Suspension System). Model AC3230. Eliminates hanger wires for spans up to 9'-0"; Compatible with 5/8" USG Sheetrock EcoSmart or 1/2" gypsum panels; Fire Class A rating; Supports simple span L/240 uniform load. material: Min. G40 hot-dipped galvanized

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAC3230.pdfData sheet

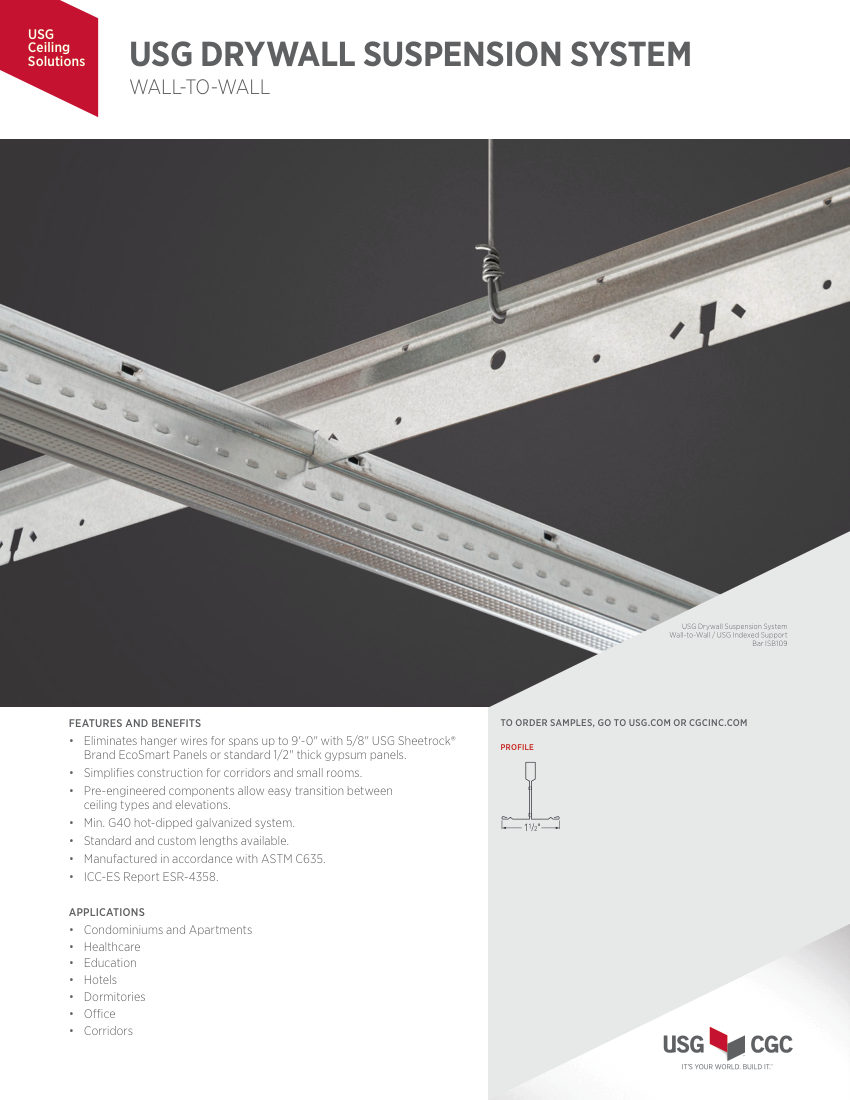

USG AC3230 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
AC3230
Product type
Drywall / Gypsum Panels
MasterFormat
09 21 16
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAC3230
DescriptionUSG Drywall Suspension System (Ceiling Suspension System). Model AC3230. Eliminates hanger wires for spans up to 9'-0"; Compatible with 5/8" USG Sheetrock EcoSmart or 1/2" gypsum panels; Fire Class A rating; Supports simple span L/240 uniform load. material: Min. G40 hot-dipped galvanized
FinishHot-dipped galvanized
MountingWall-to-Wall
Dimensions1-1/2" face width, 1.617" height (DGW26s)
ComplianceASTM C635, ICC-ES ESR-4358.
