DIV 09 · FINISHESACOUSTICAL CEILINGSCUT SHEET INDEXED

USGDonn® Brand M7 Overlapping Wall AngleAC3270

USG Overlapping Wall Angle (Ceiling Trim). Model M7. Proprietary overlap detail provides extra support for easier installation; Ensures trim faces are level and eliminates gaps at butt joints; Available in Standard, Advantage, and Powder-Coated finishes; Compliant with CDPH 01350 v1.2-2017 for low VOC emissions on select finishes. finish: Standard, Advantage, Powder-Coated

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAC3270.pdfData sheet

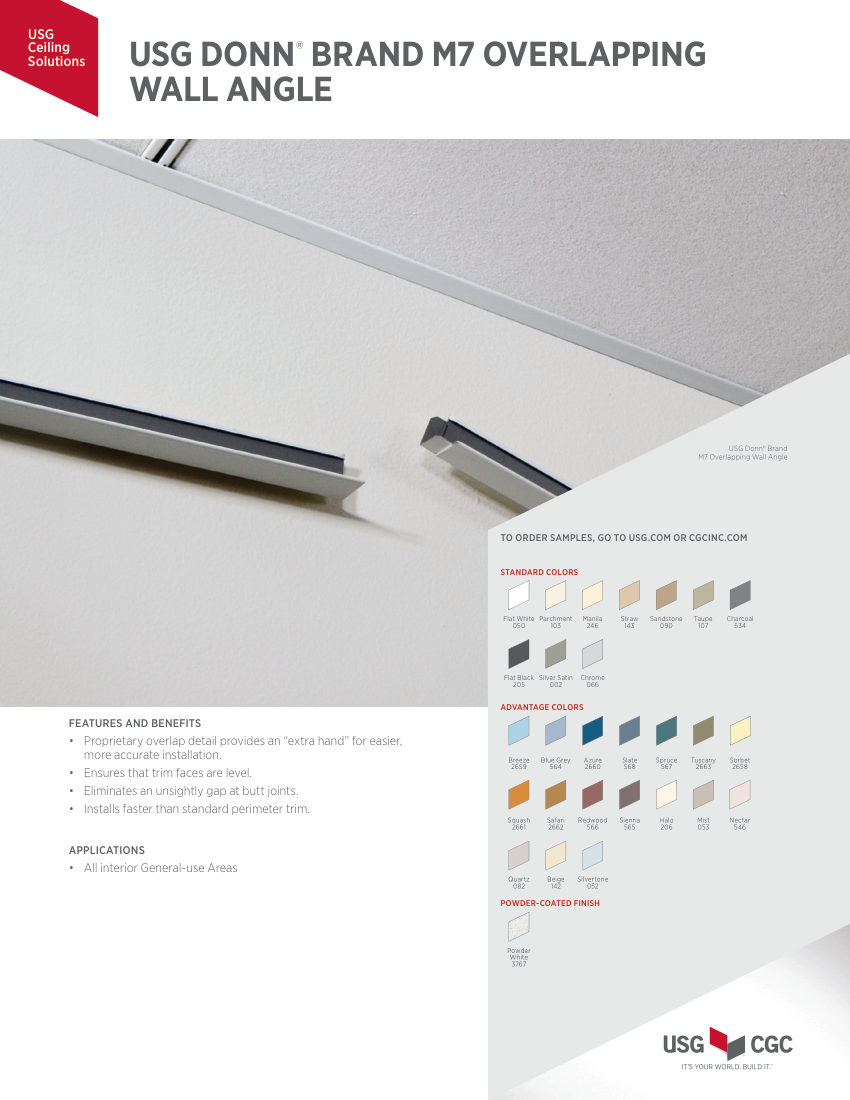

USG AC3270 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
AC3270
Product type
Acoustical Ceilings
MasterFormat
09 51 13
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAC3270
DescriptionUSG Overlapping Wall Angle (Ceiling Trim). Model M7. Proprietary overlap detail provides extra support for easier installation; Ensures trim faces are level and eliminates gaps at butt joints; Available in Standard, Advantage, and Powder-Coated finishes; Compliant with CDPH 01350 v1.2-2017 for low VOC emissions on select finishes. finish: Standard, Advantage, Powder-Coated
MountingOverlap detail
Dimensions12' (3600 mm) length, 7/8" width
ComplianceCDPH 01350 v1.2-2017.
