USGCompässo™ Elite for Drywall Extruded Perimeter TrimAC3317

USG Extruded Perimeter Trim (Ceiling Trim). Model CPALDWJT2510, CPALDWJT410, CPALDWJT610, CPALDWJT810. Available in 2-1/2", 4", 6", and 8" trim heights; Standard length is 10 feet; Material is extruded aluminum alloy; Finish is factory-applied baked-on polyester conversion coat. material: Extruded aluminum alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAC3317.pdfData sheet

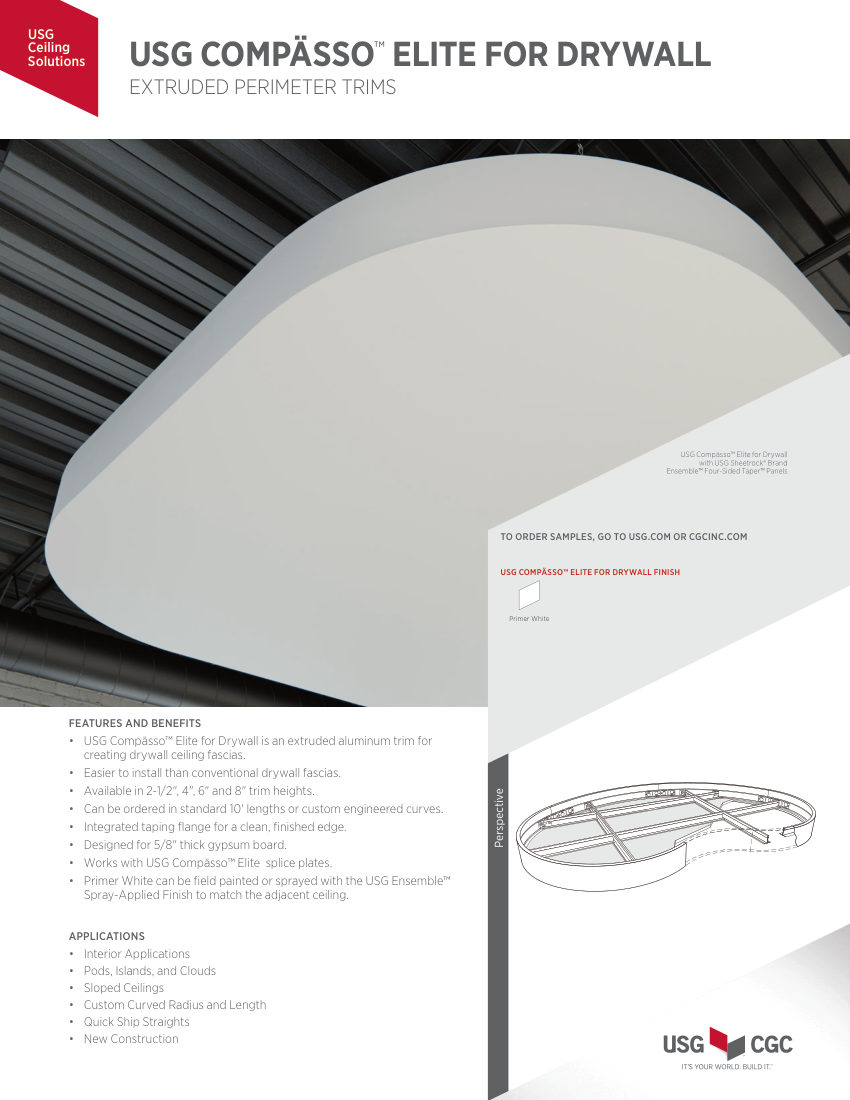

USG AC3317 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
AC3317
Product type
Drywall / Gypsum Panels
MasterFormat
09 21 16
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAC3317
DescriptionUSG Extruded Perimeter Trim (Ceiling Trim). Model CPALDWJT2510, CPALDWJT410, CPALDWJT610, CPALDWJT810. Available in 2-1/2", 4", 6", and 8" trim heights; Standard length is 10 feet; Material is extruded aluminum alloy; Finish is factory-applied baked-on polyester conversion coat. material: Extruded aluminum alloy
FinishPrimer White, baked-on polyester conversion coat
MountingDesigned for 5/8" thick gypsum board
Dimensions2-1/2", 4", 6", 8" trim heights; 10' standard length.
