DIV 09 · FINISHESACOUSTICAL CEILINGSCUT SHEET INDEXED

USGAC3324

USG Acoustical Suspension System (Ceiling Suspension System). Model DXAS, DXAS-ES, DX216, DXL424. Spans up to 8 feet with no hanger wires; Compatible with USG DX and DXT cross tees; Fire Class A rating; High recycled content. connectionSize: 15/16" and 9/16" face profiles

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAC3324.pdfData sheet

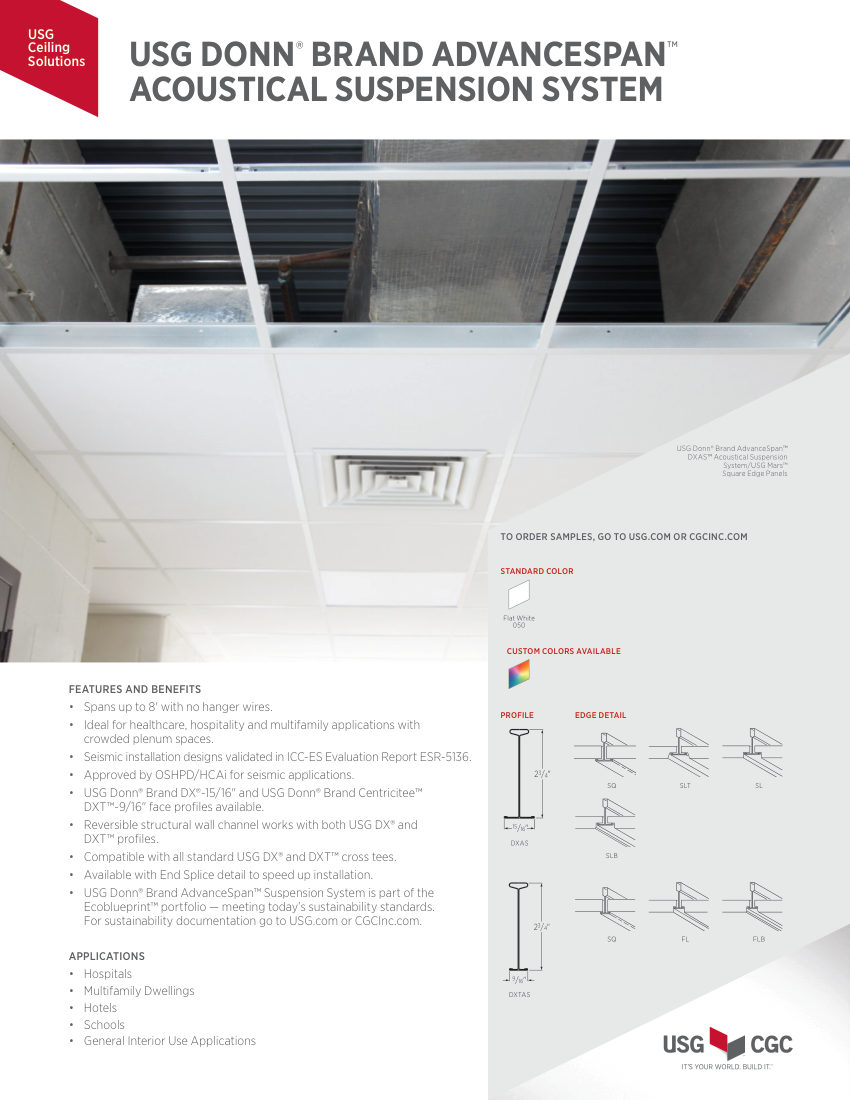

USG AC3324 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
AC3324
Product type
Acoustical Ceilings
MasterFormat
09 51 13
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAC3324
DescriptionUSG Acoustical Suspension System (Ceiling Suspension System). Model DXAS, DXAS-ES, DX216, DXL424. Spans up to 8 feet with no hanger wires; Compatible with USG DX and DXT cross tees; Fire Class A rating; High recycled content. connectionSize: 15/16" and 9/16" face profiles
End connectionEnd Splice detail
FinishFlat White 050
MountingSeismic installation
DimensionsLengths 8'-6" to 12'-6"; Height 2-3/4"
ComplianceICC-ES ESR-5136, OSHPD/HCAi, Class A Fire Rating.
