DIV 03 · CONCRETEFLOOR UNDERLAYMENTCUT SHEET INDEXED

USGLevelrock® Brand SAM-CSD™ Sound Attenuation MatIG1919

USG Sound Attenuation Mat (USG Levelrock). Model SAM-CSD. Designed for use over corrugated steel deck; Eliminates need to pre-fill flutes; Requires minimum 1-3/8 in. (35 mm) topping of USG Levelrock CSD Early Exposure; Coverage per roll is 330 sq. ft. (30.7 m2). material: Engineered polymer resin with durable tear-resistant backing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFIG1919.pdfData sheet

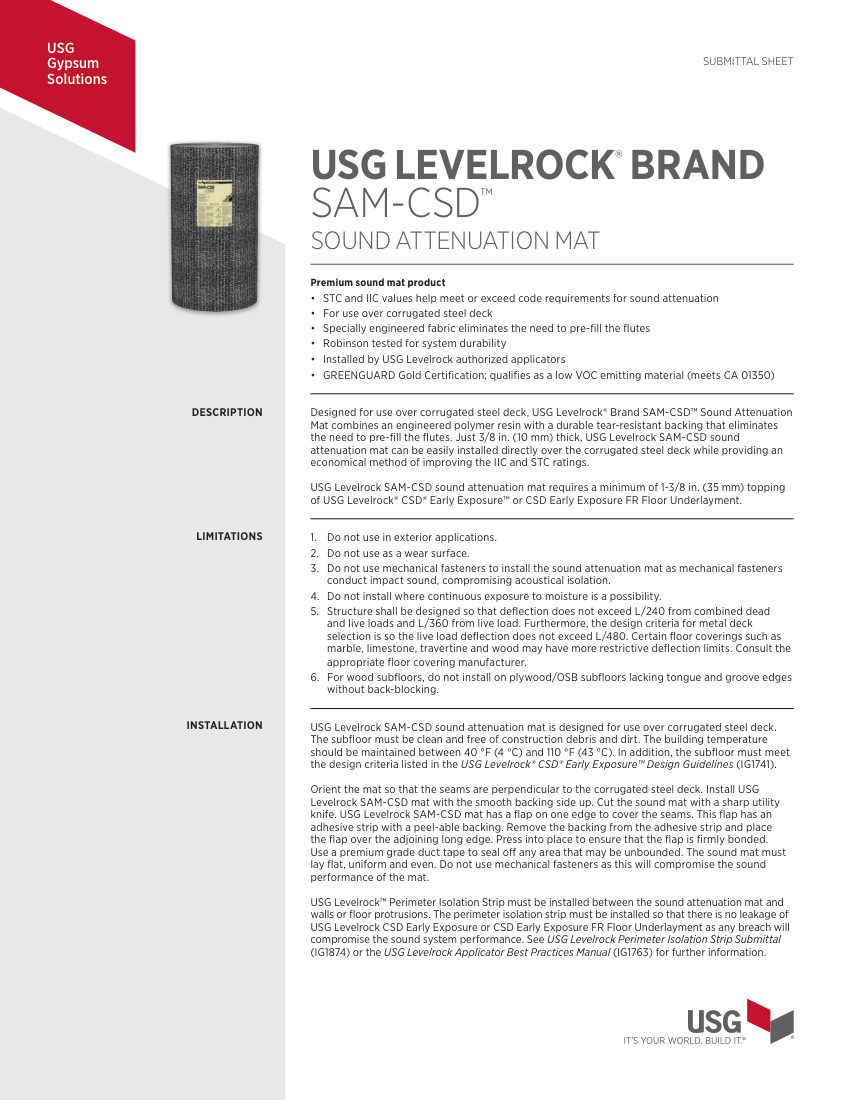

USG IG1919 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
IG1919
Product type
Floor Underlayment
MasterFormat
03 54 13
Cut sheet
PDF · manufacturer current

Product details

Catalog numberIG1919
DescriptionUSG Sound Attenuation Mat (USG Levelrock). Model SAM-CSD. Designed for use over corrugated steel deck; Eliminates need to pre-fill flutes; Requires minimum 1-3/8 in. (35 mm) topping of USG Levelrock CSD Early Exposure; Coverage per roll is 330 sq. ft. (30.7 m2). material: Engineered polymer resin with durable tear-resistant backing
MountingAdhesive flap seams, no mechanical fasteners
Dimensions39.5 in. (1 m) width, 100 lf. (30.5 m) roll length, 3/8 in. (10 mm) thickness
ComplianceGREENGUARD Gold, CA 01350.
