DIV 09 · FINISHESDRYWALL / GYPSUM PANELSCUT SHEET INDEXED

USGSheetrock® Brand MH Gypsum Base Board Firecode® XWB5402

USG Gypsum Base Board. Model WB5402. 5/8 in. (15.9 mm) Type X gypsum base board; UL Classified as Type SCX for fire resistance; Flame Spread Index of 15 and Smoke Developed Index of 0; Listed for shear resistance and ceiling diaphragms by PER-01146. material: Gypsum core with 100% recycled face and back papers

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFWB5402.pdfData sheet

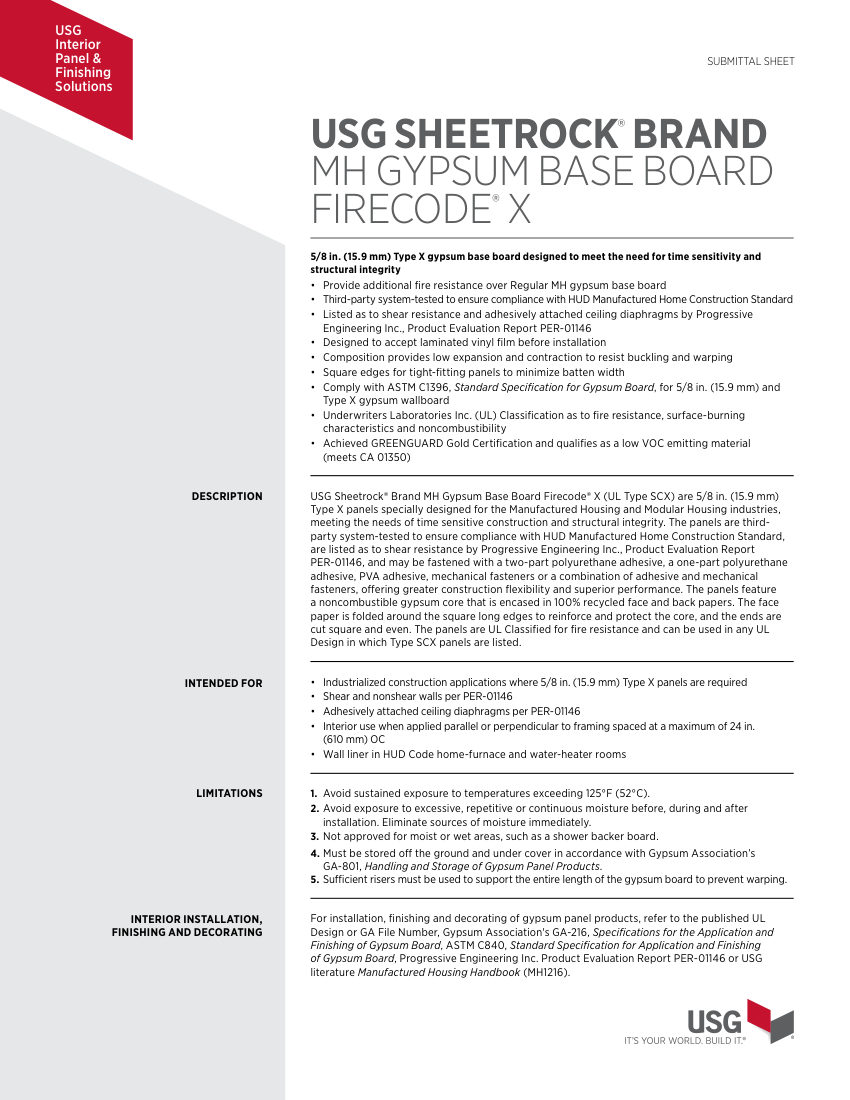

USG WB5402 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
WB5402
Product type
Drywall / Gypsum Panels
MasterFormat
09 21 16
Cut sheet
PDF · manufacturer current

Product details

Catalog numberWB5402
DescriptionUSG Gypsum Base Board. Model WB5402. 5/8 in. (15.9 mm) Type X gypsum base board; UL Classified as Type SCX for fire resistance; Flame Spread Index of 15 and Smoke Developed Index of 0; Listed for shear resistance and ceiling diaphragms by PER-01146. material: Gypsum core with 100% recycled face and back papers
End connectionSquare edges
FinishType X
MountingAdhesive or mechanical fasteners
Dimensions5/8 in. (15.9 mm) thickness
ComplianceASTM C1396, UL Type SCX, HUD Manufactured Home Construction Standard, GREENGUARD Gold.
